Measurement E213M196
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 2.0 — 2.4 GeV2 | |
| W: | 1.525 — 1.55 GeV | |
| Ebeam: | 5.754 GeV | |

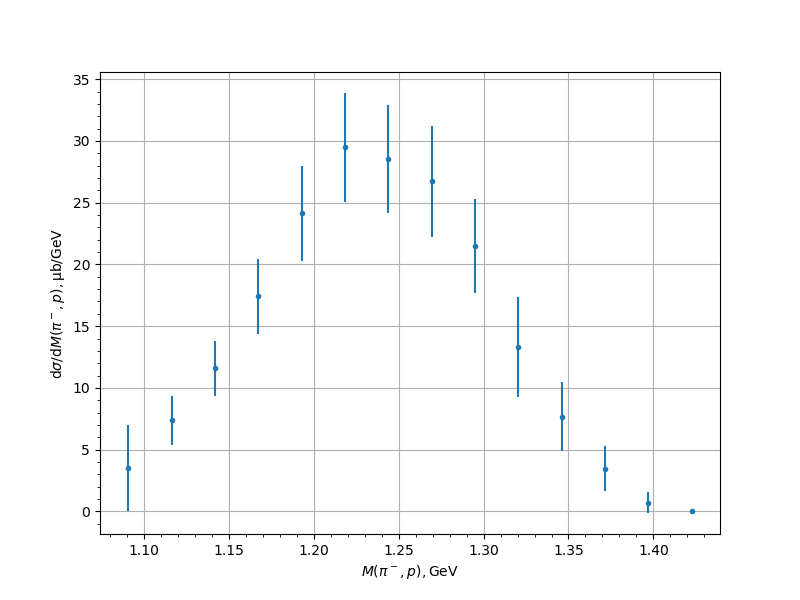

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.090613 | 3.5207 | 0.4118 | 0.7085 | 3.4846 |
| 1.116155 | 7.359 | 0.5667 | 1.3771 | 1.9614 |
| 1.141697 | 11.5856 | 0.8094 | 2.0594 | 2.2128 |
| 1.167239 | 17.4181 | 0.9845 | 2.8498 | 3.0151 |
| 1.192781 | 24.1454 | 1.1707 | 3.6581 | 3.8409 |
| 1.218323 | 29.4719 | 1.1605 | 4.2574 | 4.4128 |
| 1.243865 | 28.5529 | 1.172 | 4.2396 | 4.3986 |
| 1.269407 | 26.7272 | 1.2955 | 4.3345 | 4.5239 |
| 1.294949 | 21.4979 | 1.2607 | 3.6051 | 3.8191 |
| 1.320491 | 13.3343 | 0.8784 | 2.8283 | 4.0354 |
| 1.346033 | 7.6759 | 0.6486 | 1.9818 | 2.7864 |
| 1.371575 | 3.4607 | 0.2804 | 1.288 | 1.8162 |
| 1.397117 | 0.7104 | 0.0821 | 0.3177 | 0.8442 |
| 1.422659 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
