Measurement E213M205
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |

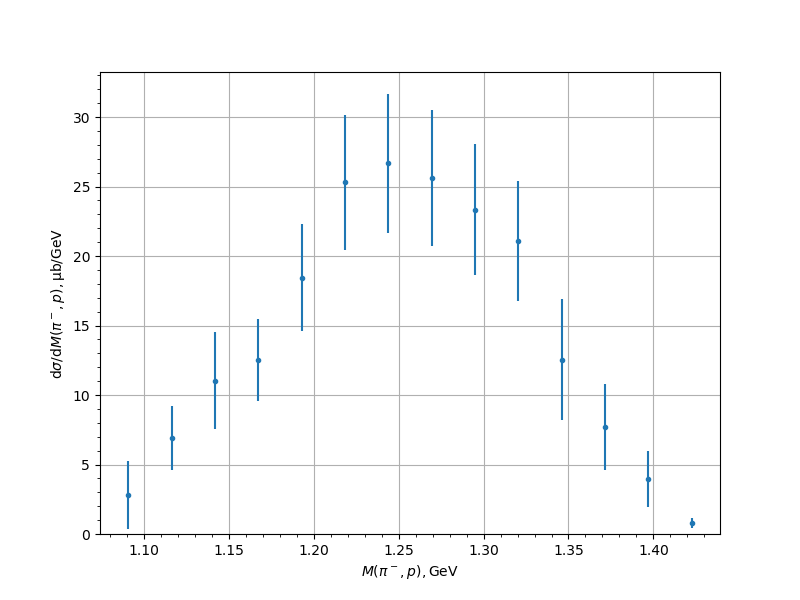

| Quantity: | dσ/dM(π−,p) | |
| Q2: | 2.0 — 2.4 GeV2 | |
| W: | 1.55 — 1.575 GeV | |
| Ebeam: | 5.754 GeV | |
| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.090613 | 2.7977 | 0.3115 | 0.7545 | 2.4315 |
| 1.116155 | 6.9057 | 0.7016 | 1.6106 | 2.2785 |
| 1.141697 | 11.043 | 0.8576 | 2.4097 | 3.4551 |
| 1.167239 | 12.5058 | 0.771 | 2.8325 | 2.9356 |
| 1.192781 | 18.4493 | 0.9037 | 3.7481 | 3.8555 |
| 1.218323 | 25.2988 | 1.205 | 4.6876 | 4.84 |
| 1.243865 | 26.6741 | 1.2855 | 4.8328 | 5.0008 |
| 1.269407 | 25.6108 | 1.4379 | 4.6908 | 4.9062 |
| 1.294949 | 23.3423 | 1.1163 | 4.5945 | 4.7281 |
| 1.320491 | 21.0692 | 1.3487 | 4.0831 | 4.3001 |
| 1.346033 | 12.5503 | 0.8769 | 3.0844 | 4.3638 |
| 1.371575 | 7.6754 | 0.7535 | 2.1935 | 3.1021 |
| 1.397117 | 3.9674 | 0.417 | 1.4221 | 2.0146 |
| 1.422659 | 0.7844 | 0.1117 | 0.3462 | 0.3637 |
Experiment comment:
