Measurement E213M215
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,π−) | |
| Q2: | 2.0 — 2.4 GeV2 | |
| W: | 1.575 — 1.6 GeV | |
| Ebeam: | 5.754 GeV | |

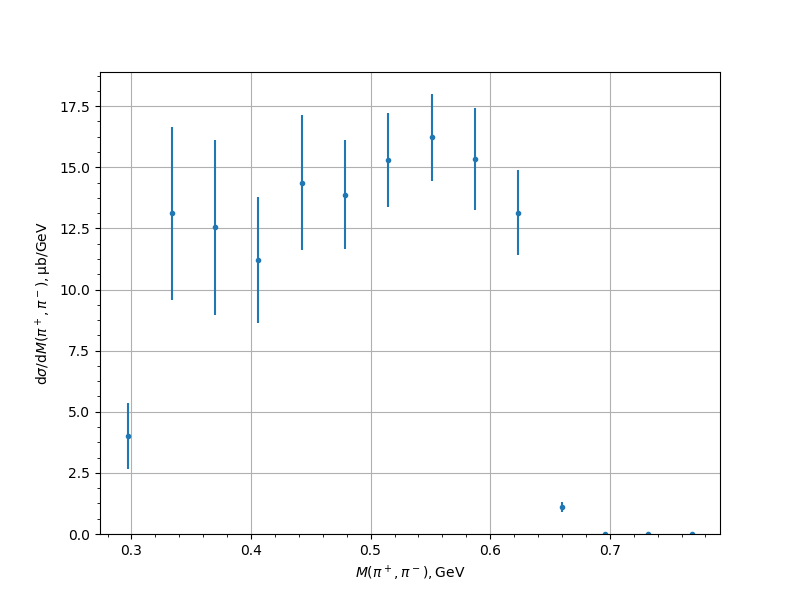

| M(π+,π−), [GeV] | dσ/dM(π+,π−), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 0.297268 | 4.0053 | 0.3619 | 0.9569 | 1.3568 |
| 0.333525 | 13.1192 | 1.0041 | 2.5092 | 3.5449 |
| 0.369781 | 12.5429 | 0.8572 | 2.5313 | 3.584 |
| 0.406037 | 11.2203 | 0.8925 | 2.4245 | 2.5836 |
| 0.442294 | 14.3654 | 0.9214 | 2.5968 | 2.7555 |
| 0.47855 | 13.8677 | 0.8414 | 2.0648 | 2.2296 |
| 0.514806 | 15.3016 | 0.8801 | 1.7055 | 1.9192 |
| 0.551062 | 16.2269 | 0.6497 | 1.6463 | 1.7699 |
| 0.587319 | 15.3389 | 0.625 | 1.4678 | 2.0738 |
| 0.623575 | 13.1366 | 0.6151 | 1.2277 | 1.7344 |
| 0.659831 | 1.0967 | 0.1292 | 0.1583 | 0.2043 |
| 0.696087 | 0.0 | 0.0 | 0.0 | 0.0 |
| 0.732344 | 0.0 | 0.0 | 0.0 | 0.0 |
| 0.7686 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
