Measurement E213M234
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 2.0 — 2.4 GeV2 | |
| W: | 1.625 — 1.65 GeV | |
| Ebeam: | 5.754 GeV | |

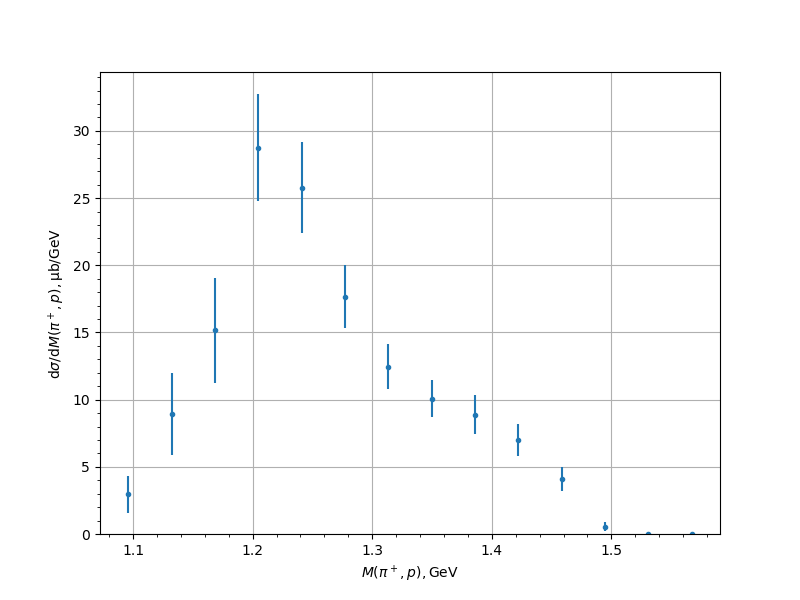

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.09597 | 2.964 | 0.2109 | 0.9797 | 1.3793 |
| 1.132227 | 8.9352 | 0.5842 | 2.141 | 3.0302 |
| 1.168483 | 15.1545 | 0.8384 | 2.7574 | 3.9002 |
| 1.204739 | 28.7549 | 1.3046 | 3.772 | 3.9912 |
| 1.240995 | 25.78 | 1.1372 | 3.1924 | 3.3889 |
| 1.277252 | 17.6717 | 0.9228 | 2.1592 | 2.3481 |
| 1.313508 | 12.4529 | 0.7352 | 1.5285 | 1.6961 |
| 1.349764 | 10.0836 | 0.6138 | 1.1944 | 1.3429 |
| 1.38602 | 8.8685 | 0.5318 | 1.0331 | 1.4601 |
| 1.422277 | 6.9991 | 0.51 | 0.8577 | 1.2145 |
| 1.458533 | 4.0857 | 0.3727 | 0.6247 | 0.918 |
| 1.494789 | 0.558 | 0.0518 | 0.2502 | 0.355 |
| 1.531046 | 0.0 | 0.0018 | 0.0 | 0.0 |
| 1.567302 | 0.0 | 0.002 | 0.0 | 0.0 |
Experiment comment:
