Measurement E213M277
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 2.0 — 2.4 GeV2 | |
| W: | 1.75 — 1.775 GeV | |
| Ebeam: | 5.754 GeV | |

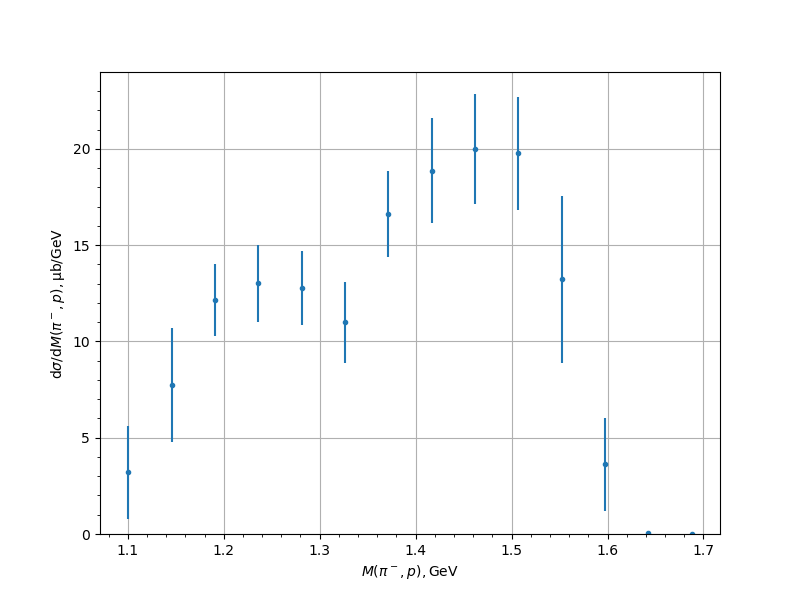

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.100435 | 3.198 | 0.3413 | 0.5404 | 2.4028 |
| 1.145619 | 7.7435 | 0.7297 | 1.1646 | 2.9678 |
| 1.190804 | 12.1434 | 0.6773 | 1.7466 | 1.8734 |
| 1.235989 | 13.0123 | 0.5963 | 1.892 | 1.9838 |
| 1.281174 | 12.7587 | 0.6361 | 1.8121 | 1.9205 |
| 1.326359 | 10.9846 | 1.395 | 1.567 | 2.098 |
| 1.371544 | 16.6105 | 0.7662 | 2.0981 | 2.2336 |
| 1.416728 | 18.8738 | 0.879 | 2.5597 | 2.7064 |
| 1.461913 | 19.9977 | 0.9465 | 2.6878 | 2.8496 |
| 1.507098 | 19.7736 | 0.7869 | 2.8162 | 2.9241 |
| 1.552283 | 13.2333 | 0.812 | 2.0659 | 4.3358 |
| 1.597468 | 3.6202 | 0.2834 | 0.7573 | 2.4057 |
| 1.642653 | 0.0441 | 0.0005 | 0.0261 | 0.0261 |
| 1.687837 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
