Measurement E213M286
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 2.0 — 2.4 GeV2 | |
| W: | 1.775 — 1.8 GeV | |
| Ebeam: | 5.754 GeV | |

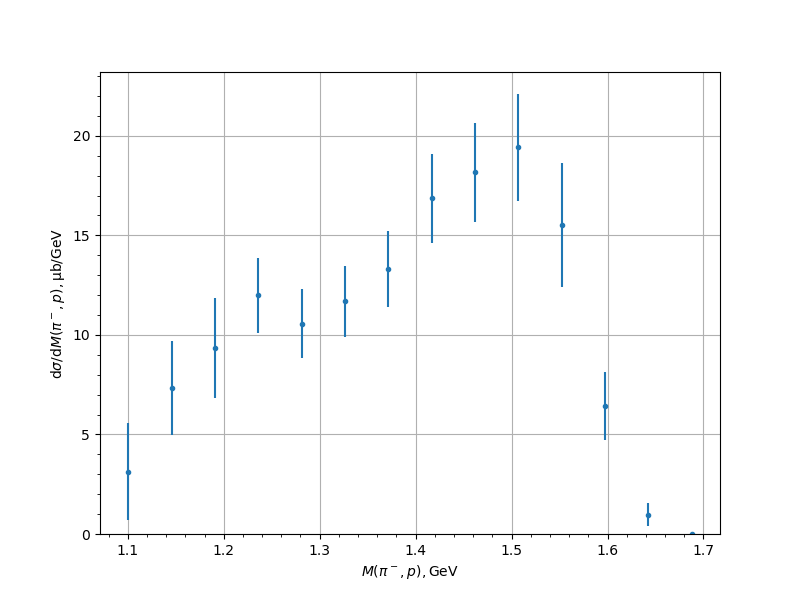

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.100435 | 3.1361 | 0.3615 | 0.523 | 2.4187 |
| 1.145619 | 7.3316 | 0.6607 | 1.1298 | 2.3501 |
| 1.190804 | 9.3493 | 0.6468 | 1.4802 | 2.526 |
| 1.235989 | 11.9936 | 0.5681 | 1.8071 | 1.8943 |
| 1.281174 | 10.5687 | 0.4786 | 1.652 | 1.7199 |
| 1.326359 | 11.6904 | 0.5627 | 1.7031 | 1.7937 |
| 1.371544 | 13.292 | 0.5712 | 1.8199 | 1.9074 |
| 1.416728 | 16.8569 | 0.7892 | 2.1139 | 2.2564 |
| 1.461913 | 18.1597 | 0.7292 | 2.3687 | 2.4784 |
| 1.507098 | 19.4264 | 0.8682 | 2.5312 | 2.6759 |
| 1.552283 | 15.5191 | 0.7393 | 2.1365 | 3.095 |
| 1.597468 | 6.4405 | 0.4085 | 1.1973 | 1.7011 |
| 1.642653 | 0.9788 | 0.121 | 0.2728 | 0.5881 |
| 1.687837 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
