Measurement E213M313
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 2.0 — 2.4 GeV2 | |
| W: | 1.85 — 1.875 GeV | |
| Ebeam: | 5.754 GeV | |

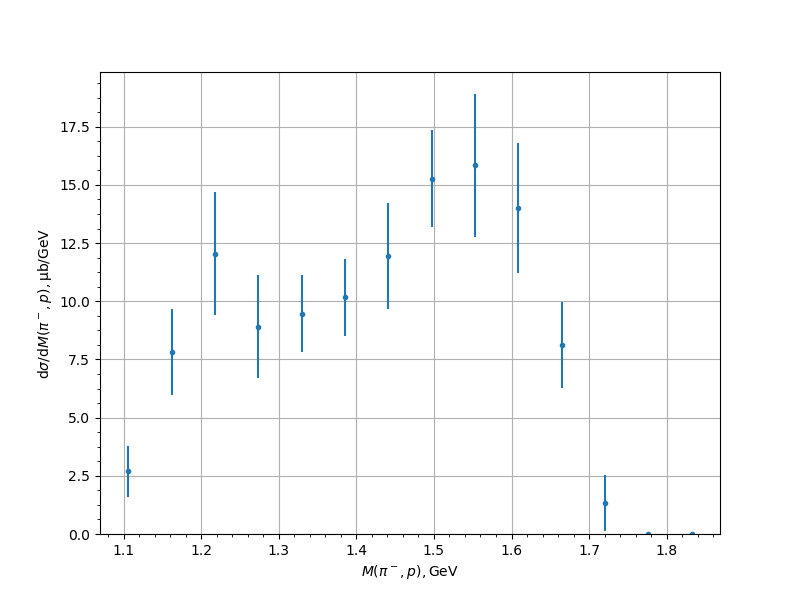

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.105792 | 2.704 | 0.9616 | 0.5238 | 1.095 |
| 1.161691 | 7.8246 | 0.4825 | 1.3084 | 1.8532 |
| 1.21759 | 12.0487 | 0.6067 | 1.8676 | 2.6477 |
| 1.273489 | 8.9156 | 0.5833 | 1.5733 | 2.225 |
| 1.329388 | 9.4655 | 0.4394 | 1.5927 | 1.6522 |
| 1.385287 | 10.1752 | 0.4547 | 1.5885 | 1.6523 |
| 1.441186 | 11.9466 | 0.6483 | 1.6114 | 2.2837 |
| 1.497086 | 15.2681 | 0.6619 | 1.9905 | 2.0977 |
| 1.552985 | 15.8384 | 0.7061 | 2.162 | 3.0675 |
| 1.608884 | 13.9955 | 0.6096 | 1.9684 | 2.7917 |
| 1.664783 | 8.1287 | 0.5473 | 1.3069 | 1.8556 |
| 1.720682 | 1.3272 | 0.1647 | 0.3133 | 1.2061 |
| 1.776581 | 0.0 | 0.0 | 0.0 | 0.0 |
| 1.83248 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
