Measurement E213M315
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 2.0 — 2.4 GeV2 | |
| W: | 1.85 — 1.875 GeV | |
| Ebeam: | 5.754 GeV | |

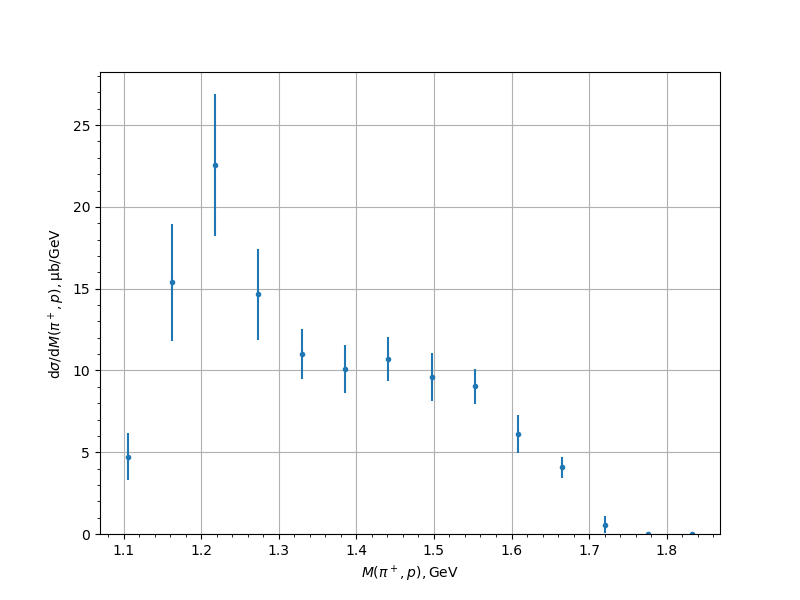

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.105792 | 4.7246 | 0.2869 | 1.0228 | 1.4494 |
| 1.161691 | 15.3848 | 0.6556 | 2.5143 | 3.5567 |
| 1.21759 | 22.5692 | 1.0759 | 3.0636 | 4.3342 |
| 1.273489 | 14.6574 | 0.7707 | 1.9554 | 2.7975 |
| 1.329388 | 10.9922 | 0.6 | 1.4077 | 1.5302 |
| 1.385287 | 10.0661 | 0.8309 | 1.2135 | 1.4707 |
| 1.441186 | 10.6798 | 0.5821 | 1.2138 | 1.3461 |
| 1.497086 | 9.6138 | 0.5146 | 1.049 | 1.4804 |
| 1.552985 | 9.0395 | 0.4469 | 0.9696 | 1.0676 |
| 1.608884 | 6.096 | 0.9622 | 0.6605 | 1.1671 |
| 1.664783 | 4.0716 | 0.2672 | 0.4526 | 0.6434 |
| 1.720682 | 0.5736 | 0.0829 | 0.1195 | 0.4975 |
| 1.776581 | 0.0 | 0.0006 | 0.0 | 0.0 |
| 1.83248 | 0.0 | 0.0005 | 0.0 | 0.0 |
Experiment comment:
