Measurement E213M333
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 2.0 — 2.4 GeV2 | |
| W: | 1.9 — 1.925 GeV | |
| Ebeam: | 5.754 GeV | |

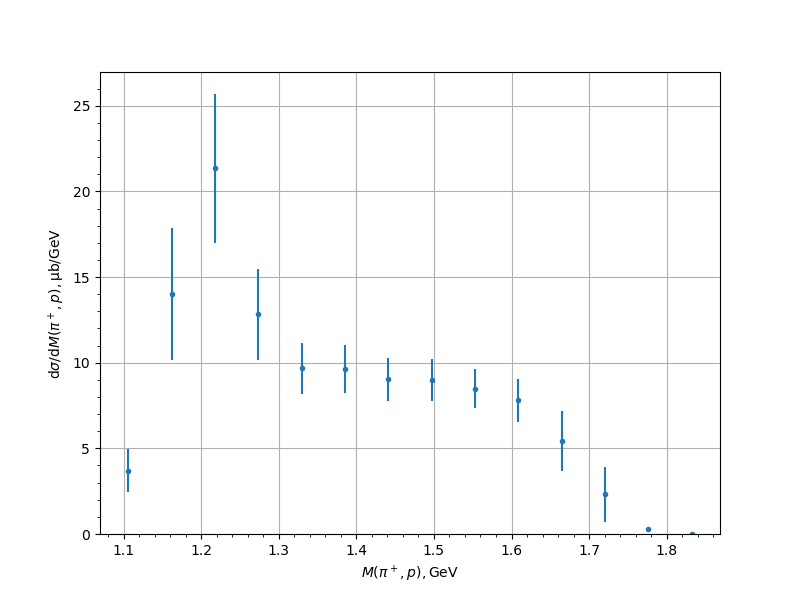

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.105792 | 3.6838 | 0.2454 | 0.8842 | 1.2513 |
| 1.161691 | 14.03 | 0.7205 | 2.4196 | 3.8581 |
| 1.21759 | 21.3507 | 1.0058 | 3.0683 | 4.3374 |
| 1.273489 | 12.8183 | 0.727 | 1.8884 | 2.6696 |
| 1.329388 | 9.6811 | 0.518 | 1.3901 | 1.4834 |
| 1.385287 | 9.6329 | 0.6479 | 1.2593 | 1.4162 |
| 1.441186 | 9.0238 | 0.532 | 1.1386 | 1.2567 |
| 1.497086 | 8.9952 | 0.5063 | 1.1055 | 1.2159 |
| 1.552985 | 8.4716 | 0.5487 | 0.9966 | 1.1376 |
| 1.608884 | 7.7998 | 0.367 | 0.8951 | 1.2672 |
| 1.664783 | 5.4386 | 0.2833 | 0.6298 | 1.7505 |
| 1.720682 | 2.3171 | 0.2794 | 0.3039 | 1.6083 |
| 1.776581 | 0.3149 | 0.0468 | 0.0883 | 0.1 |
| 1.83248 | 0.0 | 0.0006 | 0.0 | 0.0 |
Experiment comment:
