Measurement E213M369
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 2.0 — 2.4 GeV2 | |
| W: | 2.0 — 2.025 GeV | |
| Ebeam: | 5.754 GeV | |

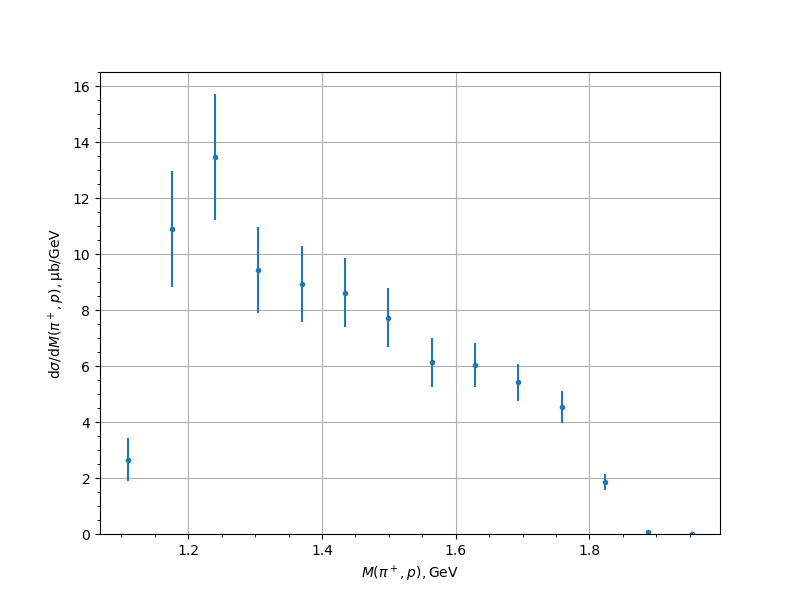

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.110256 | 2.658 | 0.1635 | 0.7408 | 0.7586 |
| 1.175084 | 10.9019 | 0.5692 | 1.9931 | 2.0728 |
| 1.239911 | 13.4826 | 0.7517 | 2.113 | 2.2427 |
| 1.304739 | 9.4443 | 0.4986 | 1.4515 | 1.5347 |
| 1.369567 | 8.929 | 0.5485 | 1.2346 | 1.351 |
| 1.434394 | 8.6301 | 0.4579 | 1.1324 | 1.2215 |
| 1.499222 | 7.721 | 0.4012 | 0.9748 | 1.0541 |
| 1.56405 | 6.1371 | 0.3986 | 0.7851 | 0.8805 |
| 1.628878 | 6.0434 | 0.3006 | 0.7156 | 0.7762 |
| 1.693705 | 5.4147 | 0.2742 | 0.6025 | 0.662 |
| 1.758533 | 4.5432 | 0.2543 | 0.5042 | 0.5647 |
| 1.823361 | 1.861 | 0.1429 | 0.2477 | 0.286 |
| 1.888188 | 0.0748 | 0.0117 | 0.0321 | 0.0341 |
| 1.953016 | 0.0 | 0.0006 | 0.0 | 0.0 |
