Measurement E213M396
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 2.0 — 2.4 GeV2 | |
| W: | 2.075 — 2.1 GeV | |
| Ebeam: | 5.754 GeV | |

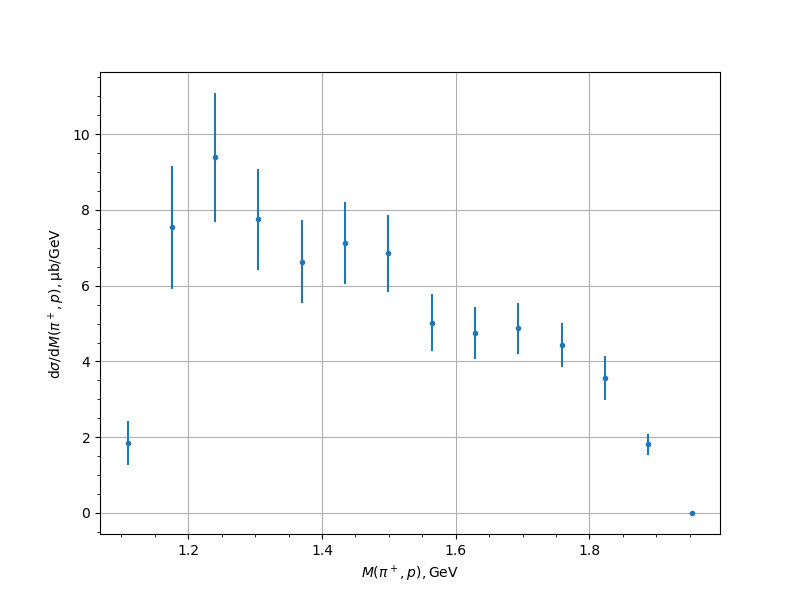

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.110256 | 1.8517 | 0.1267 | 0.5664 | 0.5804 |
| 1.175084 | 7.5387 | 0.5426 | 1.5263 | 1.6199 |
| 1.239911 | 9.3868 | 0.4528 | 1.6411 | 1.7024 |
| 1.304739 | 7.7498 | 0.3988 | 1.2692 | 1.3304 |
| 1.369567 | 6.6391 | 0.3536 | 1.0448 | 1.103 |
| 1.434394 | 7.1213 | 0.3693 | 1.0127 | 1.0779 |
| 1.499222 | 6.8527 | 0.4294 | 0.9298 | 1.0242 |
| 1.56405 | 5.0273 | 0.262 | 0.7031 | 0.7503 |
| 1.628878 | 4.7485 | 0.3054 | 0.6164 | 0.6879 |
| 1.693705 | 4.8811 | 0.3122 | 0.5955 | 0.6724 |
| 1.758533 | 4.4347 | 0.2569 | 0.5255 | 0.585 |
| 1.823361 | 3.5701 | 0.4072 | 0.4058 | 0.5749 |
| 1.888188 | 1.811 | 0.1451 | 0.2322 | 0.2738 |
| 1.953016 | 0.0012 | 0.0016 | 0.0007 | 0.0017 |
Experiment comment:
