Measurement E213M405
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 2.0 — 2.4 GeV2 | |
| W: | 2.1 — 2.125 GeV | |
| Ebeam: | 5.754 GeV | |

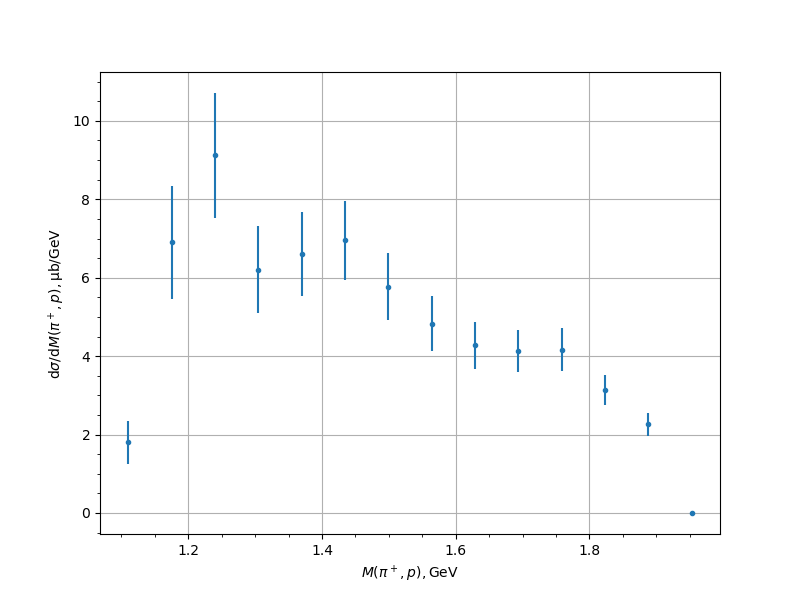

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.110256 | 1.8023 | 0.1353 | 0.5297 | 0.5467 |
| 1.175084 | 6.9061 | 0.3664 | 1.3898 | 1.4373 |
| 1.239911 | 9.119 | 0.455 | 1.526 | 1.5924 |
| 1.304739 | 6.2051 | 0.3171 | 1.0568 | 1.1033 |
| 1.369567 | 6.5964 | 0.4663 | 0.9687 | 1.0751 |
| 1.434394 | 6.9563 | 0.3815 | 0.9354 | 1.0102 |
| 1.499222 | 5.7727 | 0.3542 | 0.7711 | 0.8485 |
| 1.56405 | 4.8293 | 0.2774 | 0.636 | 0.6939 |
| 1.628878 | 4.2746 | 0.259 | 0.5456 | 0.604 |
| 1.693705 | 4.1382 | 0.2198 | 0.4928 | 0.5396 |
| 1.758533 | 4.1572 | 0.2952 | 0.4621 | 0.5483 |
| 1.823361 | 3.1302 | 0.1885 | 0.3339 | 0.3835 |
| 1.888188 | 2.2619 | 0.1602 | 0.2493 | 0.2963 |
| 1.953016 | 0.0016 | 0.0026 | 0.0009 | 0.0028 |
Experiment comment:
