Measurement E213M422
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,π−) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.425 — 1.45 GeV | |
| Ebeam: | 5.754 GeV | |

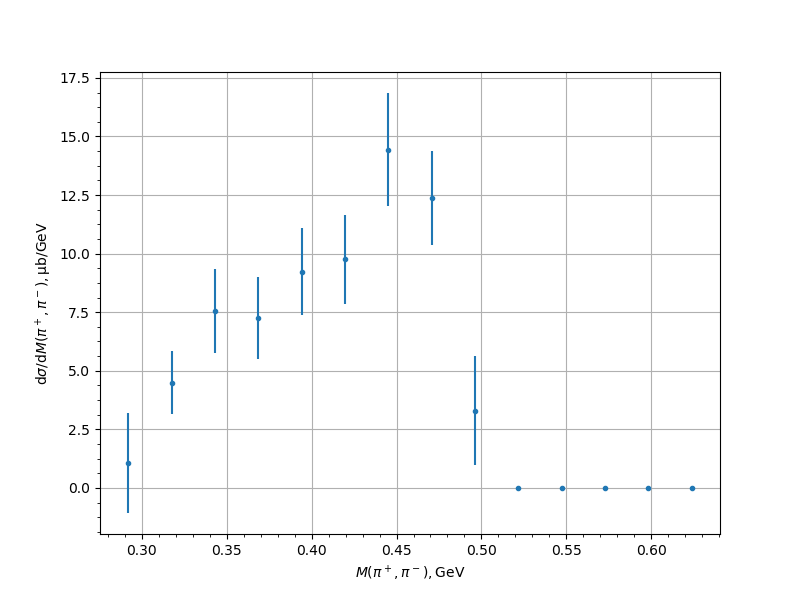

| M(π+,π−), [GeV] | dσ/dM(π+,π−), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 0.291911 | 1.0705 | 0.1015 | 0.4162 | 2.1423 |
| 0.317453 | 4.4956 | 0.3956 | 1.2678 | 1.3281 |
| 0.342995 | 7.5548 | 0.524 | 1.719 | 1.7971 |
| 0.368537 | 7.2512 | 0.7306 | 1.6055 | 1.7639 |
| 0.394079 | 9.2285 | 0.5048 | 1.7754 | 1.8458 |
| 0.419621 | 9.7575 | 0.6941 | 1.7784 | 1.909 |
| 0.445163 | 14.4366 | 0.6947 | 2.3182 | 2.4201 |
| 0.470705 | 12.3859 | 0.7422 | 1.854 | 1.997 |
| 0.496247 | 3.2889 | 0.2491 | 0.5704 | 2.3203 |
| 0.521789 | 0.001 | 0.0016 | 0.0006 | 0.0017 |
| 0.547331 | 0.0 | 0.0 | 0.0 | 0.0 |
| 0.572873 | 0.0 | 0.0 | 0.0 | 0.0 |
| 0.598415 | 0.0 | 0.0 | 0.0 | 0.0 |
| 0.623957 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
