Measurement E213M466
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |

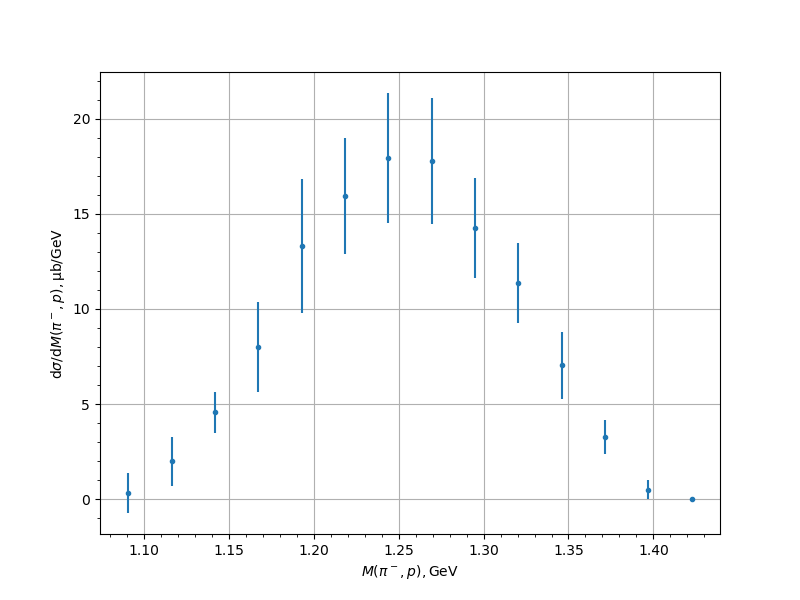

| Quantity: | dσ/dM(π−,p) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.55 — 1.575 GeV | |
| Ebeam: | 5.754 GeV | |
| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.090613 | 0.3275 | 0.0486 | 0.1125 | 1.0546 |
| 1.116155 | 1.9869 | 0.1893 | 0.4804 | 1.2827 |
| 1.141697 | 4.5678 | 0.3629 | 1.0157 | 1.0786 |
| 1.167239 | 8.0096 | 0.513 | 1.6866 | 2.3827 |
| 1.192781 | 13.2941 | 0.8207 | 2.4948 | 3.5253 |
| 1.218323 | 15.9581 | 0.6686 | 2.9711 | 3.0454 |
| 1.243865 | 17.9357 | 0.7218 | 3.3442 | 3.4212 |
| 1.269407 | 17.8027 | 0.8995 | 3.1862 | 3.3107 |
| 1.294949 | 14.2547 | 0.7364 | 2.5104 | 2.6162 |
| 1.320491 | 11.3588 | 0.7399 | 1.9805 | 2.1142 |
| 1.346033 | 7.0491 | 0.5199 | 1.2704 | 1.7613 |
| 1.371575 | 3.2862 | 0.2998 | 0.6281 | 0.8894 |
| 1.397117 | 0.5068 | 0.0763 | 0.1544 | 0.5007 |
| 1.422659 | 0.0188 | 0.0044 | 0.0117 | 0.0125 |
Experiment comment:
