Measurement E213M502
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.65 — 1.675 GeV | |
| Ebeam: | 5.754 GeV | |

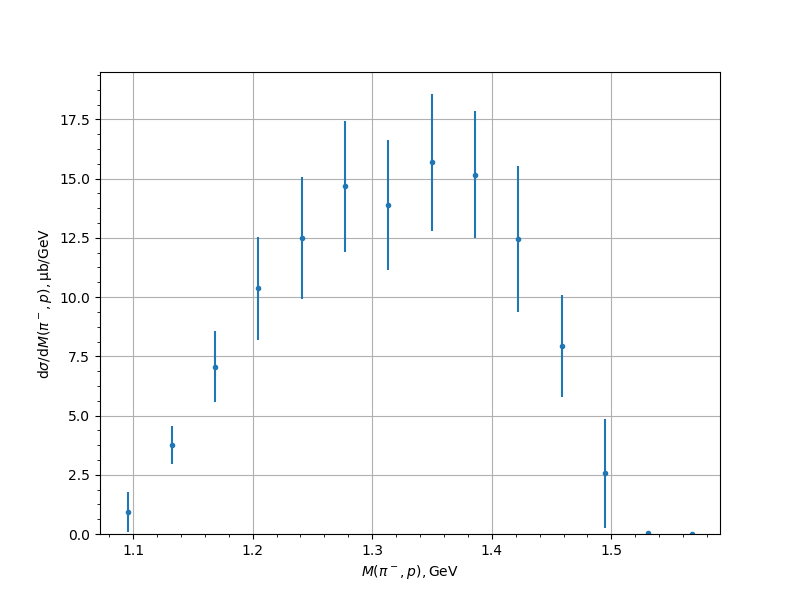

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.09597 | 0.9167 | 0.1106 | 0.2225 | 0.8406 |
| 1.132227 | 3.7633 | 0.2753 | 0.7574 | 0.8059 |
| 1.168483 | 7.0566 | 0.4096 | 1.4443 | 1.5013 |
| 1.204739 | 10.374 | 0.4966 | 2.1188 | 2.1763 |
| 1.240995 | 12.5025 | 0.679 | 2.4879 | 2.5789 |
| 1.277252 | 14.6735 | 0.6418 | 2.7025 | 2.7777 |
| 1.313508 | 13.8845 | 0.616 | 2.6761 | 2.7461 |
| 1.349764 | 15.6898 | 0.6037 | 2.8191 | 2.883 |
| 1.38602 | 15.1655 | 0.7873 | 2.5656 | 2.6836 |
| 1.422277 | 12.4471 | 0.6178 | 2.1688 | 3.0735 |
| 1.458533 | 7.9438 | 0.6072 | 1.4201 | 2.1447 |
| 1.494789 | 2.5544 | 0.236 | 0.5007 | 2.2914 |
| 1.531046 | 0.0331 | 0.0039 | 0.0196 | 0.0199 |
| 1.567302 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
