Measurement E213M513
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.675 — 1.7 GeV | |
| Ebeam: | 5.754 GeV | |

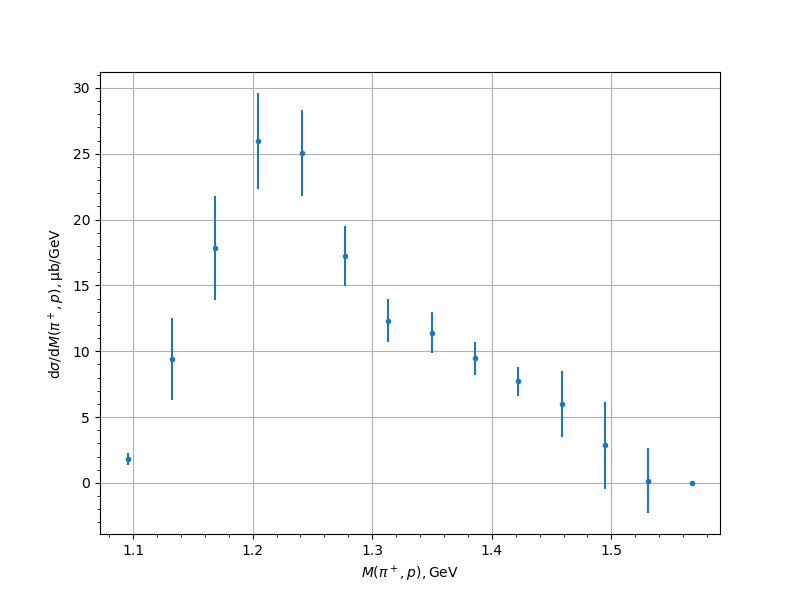

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.09597 | 1.7823 | 0.1312 | 0.4344 | 0.4538 |
| 1.132227 | 9.374 | 0.539 | 1.7975 | 3.1109 |
| 1.168483 | 17.8516 | 0.833 | 2.782 | 3.9705 |
| 1.204739 | 25.9624 | 1.1976 | 3.4433 | 3.6456 |
| 1.240995 | 25.073 | 1.1222 | 3.0691 | 3.2678 |
| 1.277252 | 17.2377 | 0.8321 | 2.1261 | 2.2831 |
| 1.313508 | 12.3214 | 0.5745 | 1.5399 | 1.6435 |
| 1.349764 | 11.4022 | 0.6773 | 1.4153 | 1.569 |
| 1.38602 | 9.4456 | 0.4799 | 1.1848 | 1.2783 |
| 1.422277 | 7.7248 | 0.4417 | 1.005 | 1.0977 |
| 1.458533 | 5.9768 | 0.3869 | 0.8388 | 2.53 |
| 1.494789 | 2.8428 | 0.2296 | 0.5304 | 3.2728 |
| 1.531046 | 0.1622 | 0.0196 | 0.0764 | 2.4508 |
| 1.567302 | 0.0014 | 0.0032 | 0.0008 | 0.0033 |
