Measurement E213M520
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.7 — 1.725 GeV | |
| Ebeam: | 5.754 GeV | |

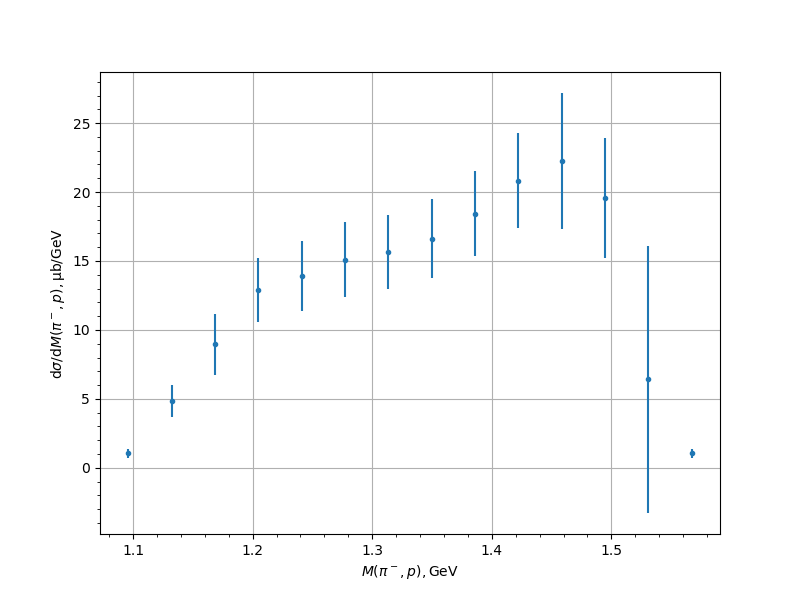

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.09597 | 1.0438 | 0.1126 | 0.2495 | 0.3551 |
| 1.132227 | 4.842 | 0.4165 | 0.8338 | 1.1811 |
| 1.168483 | 8.944 | 0.5452 | 1.5346 | 2.1778 |
| 1.204739 | 12.8999 | 0.6038 | 2.2491 | 2.3287 |
| 1.240995 | 13.8898 | 0.5916 | 2.4586 | 2.5288 |
| 1.277252 | 15.1082 | 0.9293 | 2.5279 | 2.6933 |
| 1.313508 | 15.6557 | 0.7881 | 2.5517 | 2.6706 |
| 1.349764 | 16.6148 | 0.6238 | 2.8135 | 2.8818 |
| 1.38602 | 18.4387 | 0.743 | 3.0111 | 3.1014 |
| 1.422277 | 20.8085 | 0.8969 | 3.3272 | 3.446 |
| 1.458533 | 22.243 | 1.0048 | 3.4935 | 4.9415 |
| 1.494789 | 19.5549 | 1.0232 | 3.0719 | 4.3523 |
| 1.531046 | 6.4074 | 0.5876 | 1.3706 | 9.6851 |
| 1.567302 | 1.0422 | 0.1341 | 0.3127 | 0.3403 |
Experiment comment:
