Measurement E213M522
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.7 — 1.725 GeV | |
| Ebeam: | 5.754 GeV | |

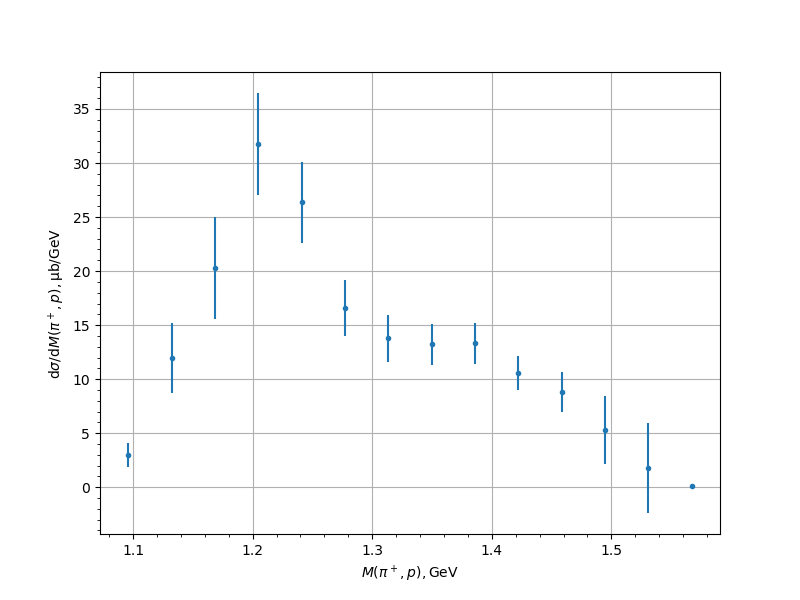

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.09597 | 2.9843 | 0.2207 | 0.7965 | 1.1223 |
| 1.132227 | 11.9447 | 0.6723 | 2.2988 | 3.2464 |
| 1.168483 | 20.2665 | 0.8654 | 3.3376 | 4.7185 |
| 1.204739 | 31.7757 | 1.2774 | 4.5269 | 4.7037 |
| 1.240995 | 26.3595 | 1.0613 | 3.6178 | 3.7703 |
| 1.277252 | 16.5918 | 1.1142 | 2.3036 | 2.5589 |
| 1.313508 | 13.7856 | 1.0255 | 1.9109 | 2.1687 |
| 1.349764 | 13.2318 | 0.5937 | 1.7814 | 1.8777 |
| 1.38602 | 13.3147 | 0.6563 | 1.768 | 1.8858 |
| 1.422277 | 10.5646 | 0.5439 | 1.4425 | 1.5416 |
| 1.458533 | 8.8061 | 0.5184 | 1.2459 | 1.814 |
| 1.494789 | 5.2881 | 0.3544 | 0.8612 | 3.1633 |
| 1.531046 | 1.7927 | 0.1573 | 0.4225 | 4.1788 |
| 1.567302 | 0.0758 | 0.0075 | 0.043 | 0.0436 |
Experiment comment:
