Measurement E213M538
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.75 — 1.775 GeV | |
| Ebeam: | 5.754 GeV | |

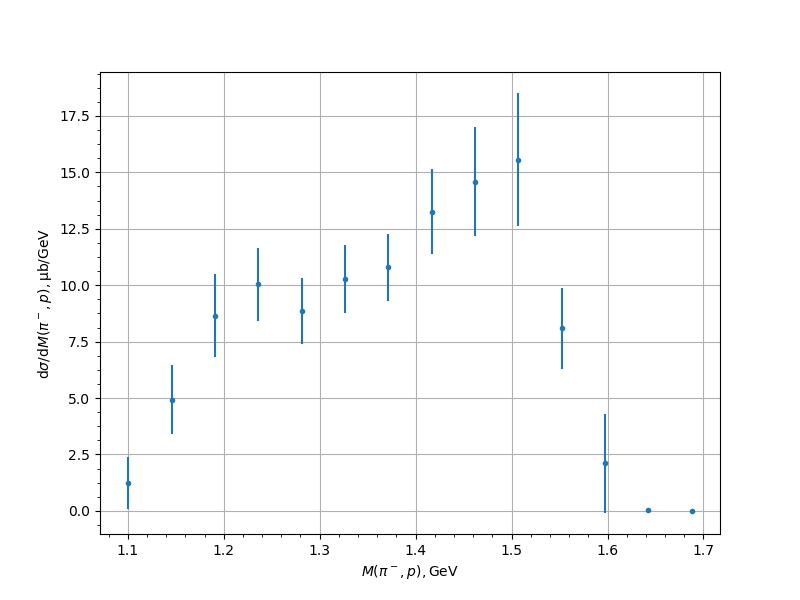

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.100435 | 1.2196 | 0.1315 | 0.2328 | 1.1552 |
| 1.145619 | 4.9242 | 0.3419 | 0.7269 | 1.5261 |
| 1.190804 | 8.6399 | 0.4723 | 1.304 | 1.8429 |
| 1.235989 | 10.0362 | 0.3784 | 1.5692 | 1.6142 |
| 1.281174 | 8.8614 | 0.3867 | 1.4138 | 1.4657 |
| 1.326359 | 10.2922 | 0.5311 | 1.4137 | 1.5102 |
| 1.371544 | 10.7912 | 0.4318 | 1.4175 | 1.4818 |
| 1.416728 | 13.2644 | 0.574 | 1.8082 | 1.8971 |
| 1.461913 | 14.5913 | 1.3492 | 1.9926 | 2.4064 |
| 1.507098 | 15.5641 | 0.735 | 2.0876 | 2.9505 |
| 1.552283 | 8.0843 | 0.3762 | 1.2692 | 1.7999 |
| 1.597468 | 2.1107 | 0.1648 | 0.4105 | 2.2034 |
| 1.642653 | 0.0231 | 0.0064 | 0.0098 | 0.0117 |
| 1.687837 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
