Measurement E213M540
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.75 — 1.775 GeV | |
| Ebeam: | 5.754 GeV | |

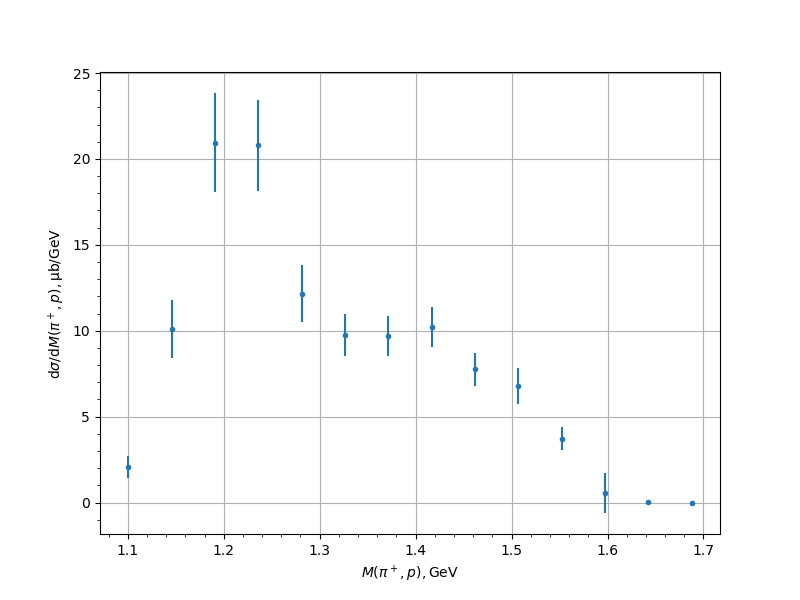

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.100435 | 2.0546 | 0.1578 | 0.4553 | 0.6457 |
| 1.145619 | 10.0986 | 0.4477 | 1.6402 | 1.7002 |
| 1.190804 | 20.9563 | 0.9624 | 2.7183 | 2.8836 |
| 1.235989 | 20.807 | 0.9725 | 2.4652 | 2.6501 |
| 1.281174 | 12.1527 | 0.8159 | 1.4445 | 1.659 |
| 1.326359 | 9.738 | 0.5078 | 1.1191 | 1.2289 |
| 1.371544 | 9.7048 | 0.4781 | 1.0694 | 1.1714 |
| 1.416728 | 10.2228 | 0.4207 | 1.0821 | 1.161 |
| 1.461913 | 7.7628 | 0.4787 | 0.8271 | 0.9557 |
| 1.507098 | 6.7621 | 0.3747 | 0.7395 | 1.0495 |
| 1.552283 | 3.7164 | 0.2905 | 0.473 | 0.6814 |
| 1.597468 | 0.55 | 0.0632 | 0.1481 | 1.1596 |
| 1.642653 | 0.0034 | 0.0022 | 0.002 | 0.003 |
| 1.687837 | 0.0 | 0.001 | 0.0 | 0.0 |
Experiment comment:
