Measurement E213M549
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.775 — 1.8 GeV | |
| Ebeam: | 5.754 GeV | |

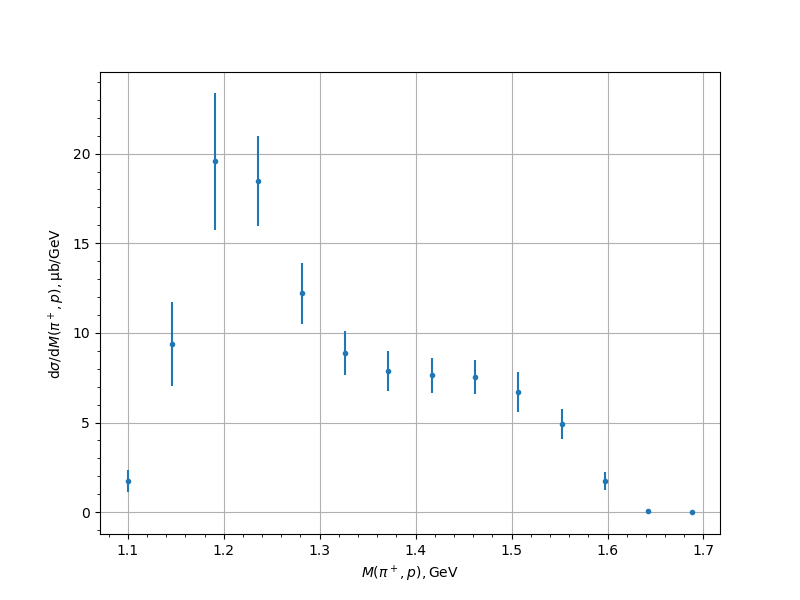

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.100435 | 1.7414 | 0.1159 | 0.4317 | 0.5994 |
| 1.145619 | 9.3554 | 0.5974 | 1.6425 | 2.3405 |
| 1.190804 | 19.5669 | 0.9105 | 2.6927 | 3.8136 |
| 1.235989 | 18.4674 | 0.7598 | 2.4041 | 2.5213 |
| 1.281174 | 12.1972 | 0.6063 | 1.574 | 1.6868 |
| 1.326359 | 8.8727 | 0.5079 | 1.1301 | 1.239 |
| 1.371544 | 7.8832 | 0.5374 | 0.9784 | 1.1163 |
| 1.416728 | 7.6295 | 0.4252 | 0.8997 | 0.9951 |
| 1.461913 | 7.5521 | 0.4043 | 0.8693 | 0.9587 |
| 1.507098 | 6.7045 | 0.3452 | 0.7777 | 1.0981 |
| 1.552283 | 4.9164 | 0.307 | 0.6043 | 0.8565 |
| 1.597468 | 1.7316 | 0.1495 | 0.2896 | 0.4935 |
| 1.642653 | 0.0652 | 0.0082 | 0.0308 | 0.1125 |
| 1.687837 | 0.0 | 0.0013 | 0.0 | 0.0 |
Experiment comment:
