Measurement E213M558
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.8 — 1.825 GeV | |
| Ebeam: | 5.754 GeV | |

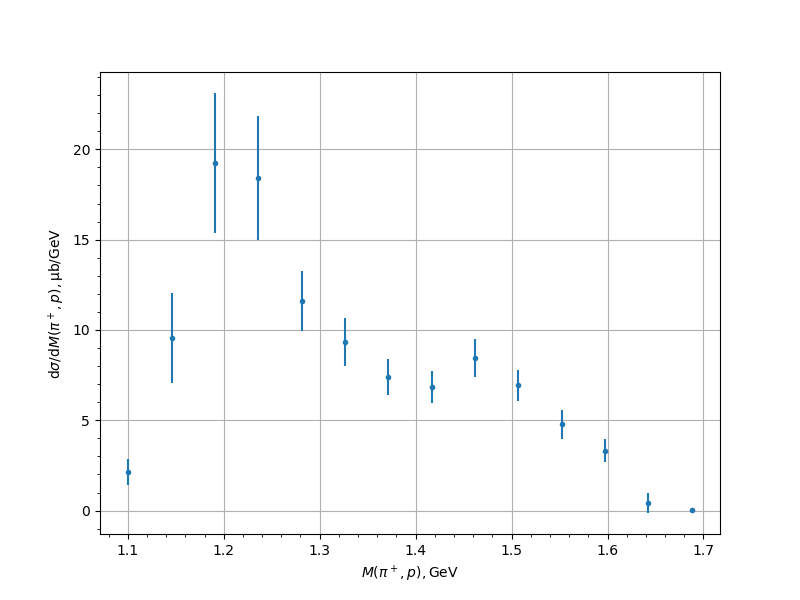

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.100435 | 2.1353 | 0.1621 | 0.5044 | 0.7117 |
| 1.145619 | 9.532 | 0.5229 | 1.7649 | 2.4945 |
| 1.190804 | 19.2458 | 0.8946 | 2.7362 | 3.8755 |
| 1.235989 | 18.3917 | 0.9487 | 2.421 | 3.4293 |
| 1.281174 | 11.6179 | 0.6153 | 1.5439 | 1.662 |
| 1.326359 | 9.3236 | 0.5808 | 1.1964 | 1.33 |
| 1.371544 | 7.4029 | 0.3779 | 0.9375 | 1.0108 |
| 1.416728 | 6.8435 | 0.3401 | 0.8225 | 0.8901 |
| 1.461913 | 8.4566 | 0.424 | 0.9536 | 1.0437 |
| 1.507098 | 6.9445 | 0.358 | 0.7885 | 0.866 |
| 1.552283 | 4.7843 | 0.3433 | 0.5714 | 0.8095 |
| 1.597468 | 3.3123 | 0.2373 | 0.4433 | 0.6298 |
| 1.642653 | 0.4251 | 0.0486 | 0.1066 | 0.5589 |
| 1.687837 | 0.0048 | 0.0027 | 0.0029 | 0.0039 |
Experiment comment:
