Measurement E213M565
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.825 — 1.85 GeV | |
| Ebeam: | 5.754 GeV | |

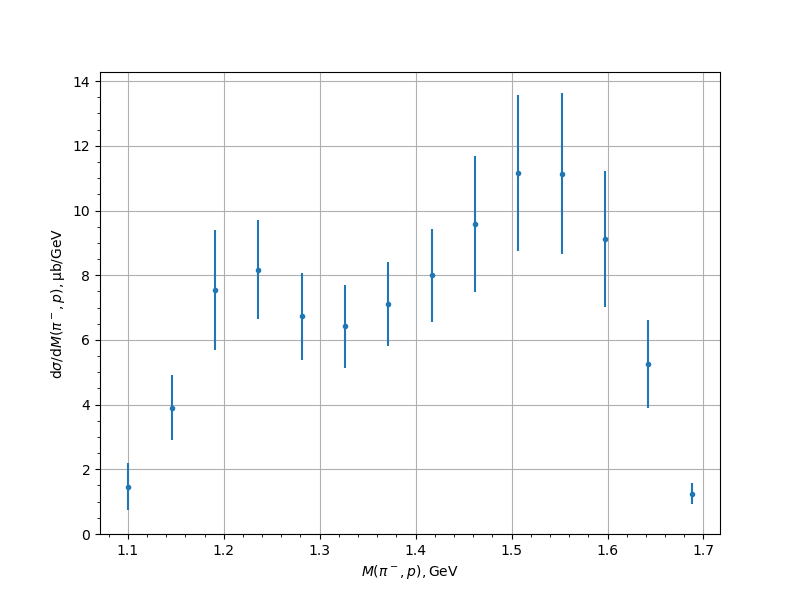

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.100435 | 1.4669 | 0.1571 | 0.2866 | 0.7169 |
| 1.145619 | 3.903 | 0.3204 | 0.7191 | 1.0109 |
| 1.190804 | 7.5435 | 0.3927 | 1.3114 | 1.8555 |
| 1.235989 | 8.166 | 0.4046 | 1.4729 | 1.5274 |
| 1.281174 | 6.7267 | 0.3123 | 1.3172 | 1.3537 |
| 1.326359 | 6.4207 | 0.2913 | 1.251 | 1.2844 |
| 1.371544 | 7.1139 | 0.347 | 1.2466 | 1.294 |
| 1.416728 | 7.9916 | 0.4813 | 1.3599 | 1.4425 |
| 1.461913 | 9.5934 | 0.4506 | 1.4885 | 2.1065 |
| 1.507098 | 11.1617 | 0.5175 | 1.703 | 2.4116 |
| 1.552283 | 11.1433 | 0.5878 | 1.7604 | 2.4948 |
| 1.597468 | 9.1114 | 0.4781 | 1.4823 | 2.1004 |
| 1.642653 | 5.2567 | 0.3333 | 0.9537 | 1.3555 |
| 1.687837 | 1.2516 | 0.143 | 0.2901 | 0.3234 |
Experiment comment:
