Measurement E213M639
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 2.025 — 2.05 GeV | |
| Ebeam: | 5.754 GeV | |

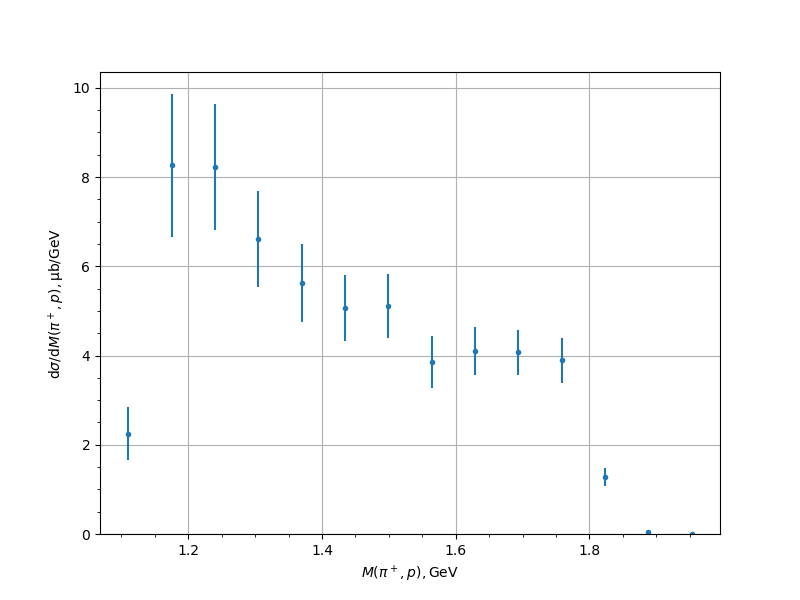

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.110256 | 2.2507 | 0.156 | 0.5778 | 0.5985 |
| 1.175084 | 8.2591 | 0.5341 | 1.5095 | 1.6012 |
| 1.239911 | 8.2273 | 0.4139 | 1.3434 | 1.4057 |
| 1.304739 | 6.6138 | 0.3239 | 1.022 | 1.0721 |
| 1.369567 | 5.6228 | 0.3349 | 0.8129 | 0.8792 |
| 1.434394 | 5.0619 | 0.2426 | 0.7075 | 0.748 |
| 1.499222 | 5.1168 | 0.2478 | 0.6733 | 0.7175 |
| 1.56405 | 3.8561 | 0.2617 | 0.5169 | 0.5794 |
| 1.628878 | 4.1014 | 0.2262 | 0.4899 | 0.5396 |
| 1.693705 | 4.0692 | 0.214 | 0.4513 | 0.4995 |
| 1.758533 | 3.8901 | 0.2871 | 0.4182 | 0.5072 |
| 1.823361 | 1.2766 | 0.0969 | 0.1757 | 0.2007 |
| 1.888188 | 0.0535 | 0.0052 | 0.0263 | 0.0268 |
| 1.953016 | 0.0 | 0.0004 | 0.0 | 0.0 |
Experiment comment:
