Measurement E213M657
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 2.075 — 2.1 GeV | |
| Ebeam: | 5.754 GeV | |

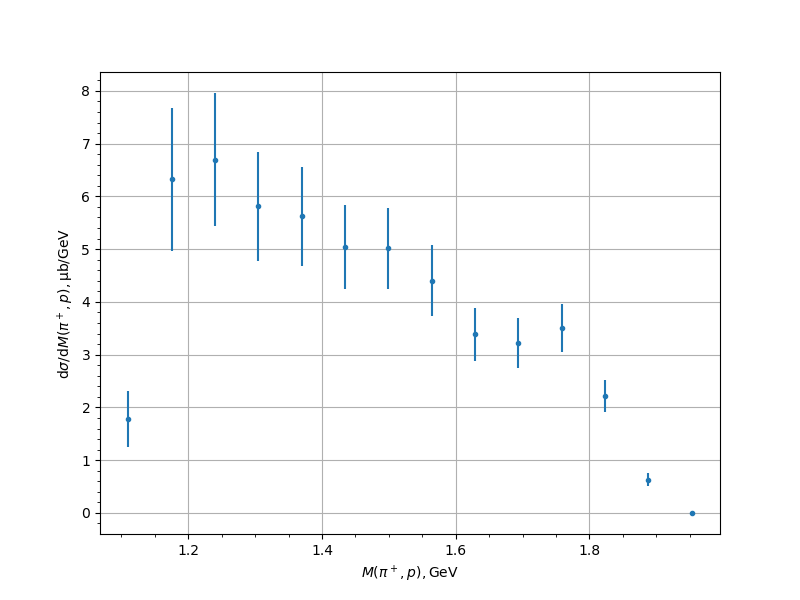

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.110256 | 1.7734 | 0.1172 | 0.5196 | 0.5326 |
| 1.175084 | 6.3205 | 0.3144 | 1.3174 | 1.3544 |
| 1.239911 | 6.6959 | 0.3285 | 1.2199 | 1.2634 |
| 1.304739 | 5.8107 | 0.3666 | 0.9608 | 1.0284 |
| 1.369567 | 5.6191 | 0.3938 | 0.861 | 0.9468 |
| 1.434394 | 5.0433 | 0.3219 | 0.7312 | 0.7989 |
| 1.499222 | 5.0126 | 0.329 | 0.7026 | 0.7758 |
| 1.56405 | 4.4036 | 0.2638 | 0.6153 | 0.6695 |
| 1.628878 | 3.3858 | 0.1855 | 0.4716 | 0.5067 |
| 1.693705 | 3.2203 | 0.224 | 0.4097 | 0.4669 |
| 1.758533 | 3.4984 | 0.1898 | 0.4148 | 0.4562 |
| 1.823361 | 2.2194 | 0.1364 | 0.2717 | 0.304 |
| 1.888188 | 0.6315 | 0.0569 | 0.1114 | 0.1251 |
| 1.953016 | 0.0001 | 0.0017 | 0.0001 | 0.0017 |
Experiment comment:
