Measurement E213M693
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 3.0 — 3.5 GeV2 | |
| W: | 1.45 — 1.475 GeV | |
| Ebeam: | 5.754 GeV | |

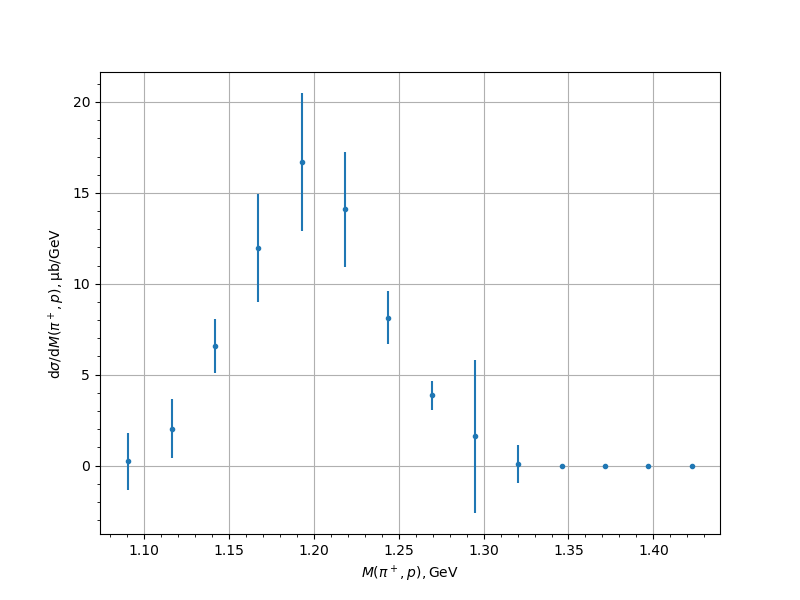

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.090613 | 0.2266 | 0.0445 | 0.1119 | 1.5486 |
| 1.116155 | 2.0238 | 0.2827 | 0.5283 | 1.6161 |
| 1.141697 | 6.5808 | 0.5555 | 1.3736 | 1.4817 |
| 1.167239 | 11.9652 | 0.8685 | 2.1035 | 2.9784 |
| 1.192781 | 16.6963 | 1.0768 | 2.6833 | 3.7973 |
| 1.218323 | 14.0942 | 0.8235 | 2.2405 | 3.1707 |
| 1.243865 | 8.1356 | 0.5669 | 1.3421 | 1.457 |
| 1.269407 | 3.8563 | 0.355 | 0.7037 | 0.7882 |
| 1.294949 | 1.604 | 0.2007 | 0.3536 | 4.2156 |
| 1.320491 | 0.0855 | 0.024 | 0.0454 | 1.025 |
| 1.346033 | 0.0 | 0.0092 | 0.0 | 0.0092 |
| 1.371575 | 0.0 | 0.0042 | 0.0 | 0.0 |
| 1.397117 | 0.0 | 0.0028 | 0.0 | 0.0 |
| 1.422659 | 0.0 | 0.003 | 0.0 | 0.0 |
Experiment comment:
