Measurement E213M700
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 3.0 — 3.5 GeV2 | |
| W: | 1.475 — 1.5 GeV | |
| Ebeam: | 5.754 GeV | |

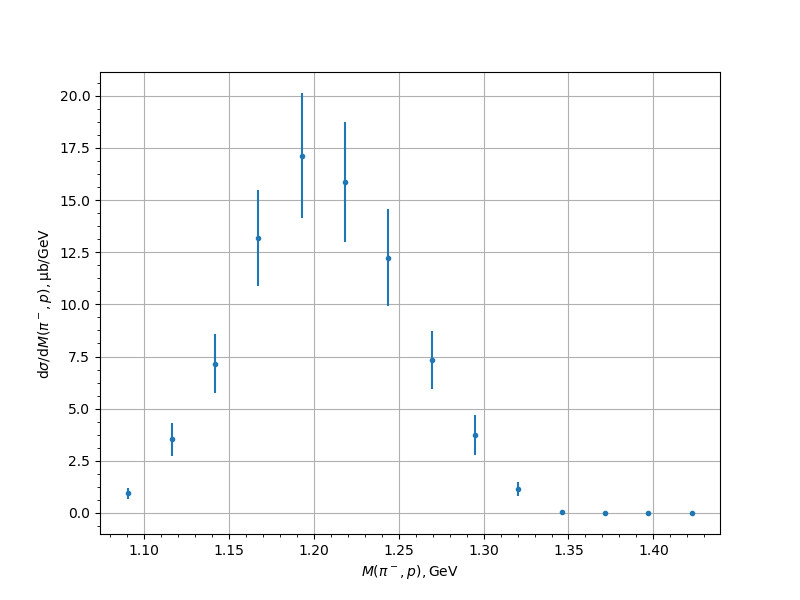

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.090613 | 0.9388 | 0.1316 | 0.2152 | 0.2523 |
| 1.116155 | 3.5282 | 0.3604 | 0.6989 | 0.7864 |
| 1.141697 | 7.1457 | 0.5884 | 1.2856 | 1.4139 |
| 1.167239 | 13.1747 | 0.7919 | 2.1588 | 2.2995 |
| 1.192781 | 17.1361 | 0.8828 | 2.8668 | 2.9996 |
| 1.218323 | 15.8715 | 0.9082 | 2.728 | 2.8752 |
| 1.243865 | 12.2471 | 1.0457 | 2.1003 | 2.3462 |
| 1.269407 | 7.3462 | 0.5364 | 1.2925 | 1.3994 |
| 1.294949 | 3.7356 | 0.3685 | 0.6668 | 0.9442 |
| 1.320491 | 1.1415 | 0.1629 | 0.2285 | 0.3263 |
| 1.346033 | 0.0506 | 0.0173 | 0.0253 | 0.0536 |
| 1.371575 | 0.0 | 0.0 | 0.0 | 0.0 |
| 1.397117 | 0.0 | 0.0 | 0.0 | 0.0 |
| 1.422659 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
