Measurement E213M709
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 3.0 — 3.5 GeV2 | |
| W: | 1.5 — 1.525 GeV | |
| Ebeam: | 5.754 GeV | |

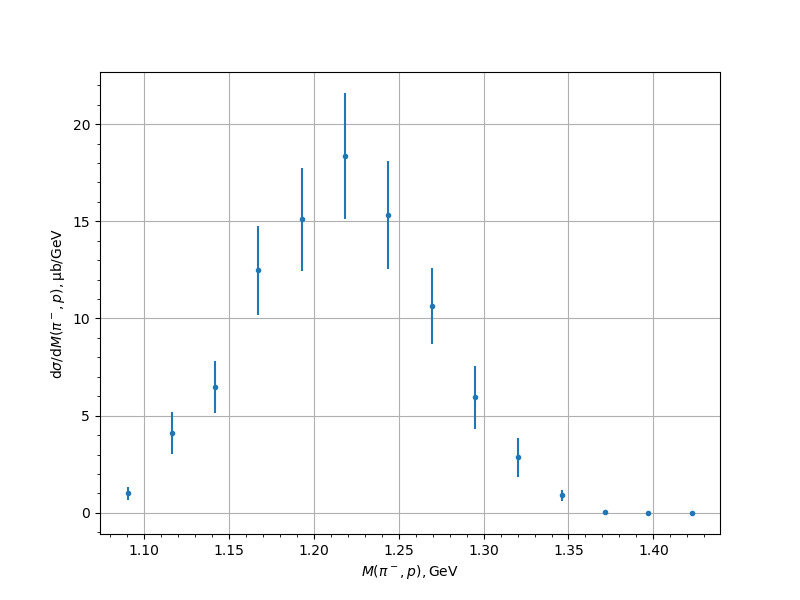

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.090613 | 0.9953 | 0.1773 | 0.2203 | 0.3165 |
| 1.116155 | 4.1154 | 0.4229 | 0.7655 | 1.0807 |
| 1.141697 | 6.4645 | 0.5005 | 1.2331 | 1.3309 |
| 1.167239 | 12.4755 | 0.9285 | 2.0908 | 2.2877 |
| 1.192781 | 15.0945 | 0.7894 | 2.5407 | 2.6605 |
| 1.218323 | 18.364 | 1.0351 | 3.0642 | 3.2343 |
| 1.243865 | 15.3168 | 0.8081 | 2.6381 | 2.7591 |
| 1.269407 | 10.6447 | 0.5837 | 1.8732 | 1.9621 |
| 1.294949 | 5.9352 | 0.4398 | 1.1325 | 1.6068 |
| 1.320491 | 2.8515 | 0.7161 | 0.5585 | 0.9889 |
| 1.346033 | 0.8947 | 0.1742 | 0.2047 | 0.2891 |
| 1.371575 | 0.0486 | 0.0095 | 0.0276 | 0.0567 |
| 1.397117 | 0.0 | 0.0 | 0.0 | 0.0 |
| 1.422659 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
