Measurement E213M736
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 3.0 — 3.5 GeV2 | |
| W: | 1.575 — 1.6 GeV | |
| Ebeam: | 5.754 GeV | |

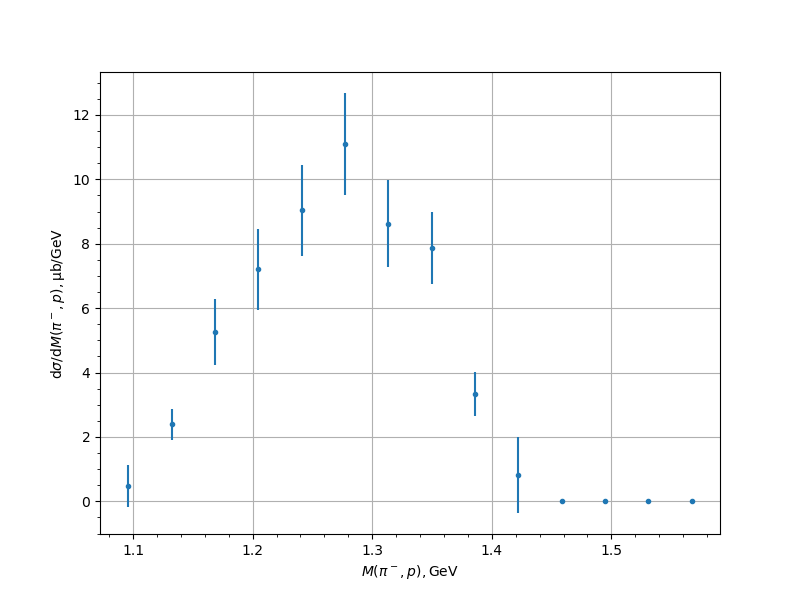

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.09597 | 0.4734 | 0.1377 | 0.1074 | 0.6467 |
| 1.132227 | 2.3937 | 0.2491 | 0.4185 | 0.487 |
| 1.168483 | 5.2514 | 0.5565 | 0.8657 | 1.0291 |
| 1.204739 | 7.204 | 0.4371 | 1.1833 | 1.2615 |
| 1.240995 | 9.0383 | 0.4924 | 1.3169 | 1.406 |
| 1.277252 | 11.0896 | 0.7176 | 1.4203 | 1.5912 |
| 1.313508 | 8.6268 | 0.6659 | 1.184 | 1.3584 |
| 1.349764 | 7.8774 | 0.5969 | 0.9518 | 1.1235 |
| 1.38602 | 3.3426 | 0.295 | 0.4613 | 0.684 |
| 1.422277 | 0.8219 | 0.1763 | 0.1316 | 1.1837 |
| 1.458533 | 0.0154 | 0.005 | 0.0064 | 0.0081 |
| 1.494789 | 0.0 | 0.0 | 0.0 | 0.0 |
| 1.531046 | 0.0 | 0.0 | 0.0 | 0.0 |
| 1.567302 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
