Measurement E213M738
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 3.0 — 3.5 GeV2 | |
| W: | 1.575 — 1.6 GeV | |
| Ebeam: | 5.754 GeV | |

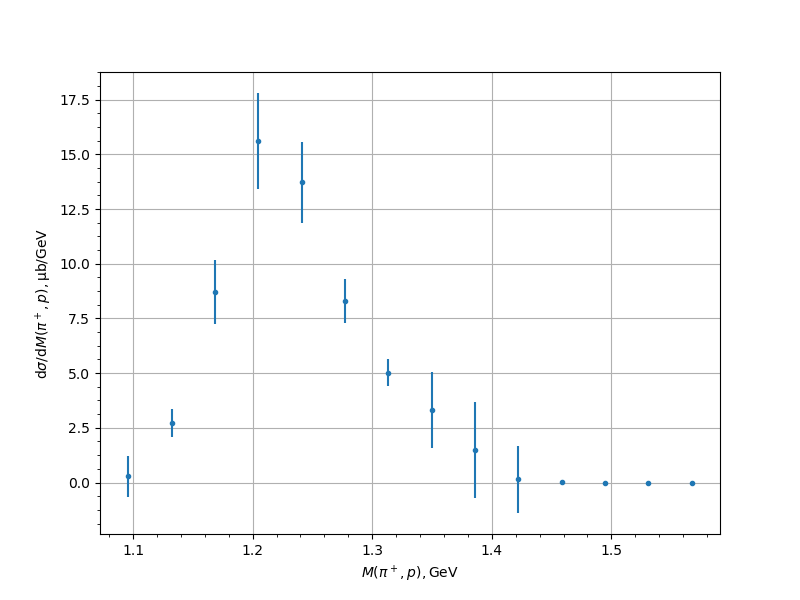

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.09597 | 0.2813 | 0.0411 | 0.0884 | 0.9452 |
| 1.132227 | 2.7317 | 0.2697 | 0.4533 | 0.6456 |
| 1.168483 | 8.6927 | 0.6665 | 1.0375 | 1.4666 |
| 1.204739 | 15.6173 | 0.9678 | 1.5462 | 2.1878 |
| 1.240995 | 13.7161 | 0.7951 | 1.3034 | 1.8445 |
| 1.277252 | 8.2937 | 0.6082 | 0.8005 | 1.0053 |
| 1.313508 | 5.0234 | 0.3698 | 0.5106 | 0.6304 |
| 1.349764 | 3.3029 | 0.2926 | 0.3605 | 1.7306 |
| 1.38602 | 1.4869 | 0.1658 | 0.2003 | 2.175 |
| 1.422277 | 0.1418 | 0.0346 | 0.053 | 1.5355 |
| 1.458533 | 0.0029 | 0.0052 | 0.0017 | 0.0055 |
| 1.494789 | 0.0 | 0.0024 | 0.0 | 0.0 |
| 1.531046 | 0.0 | 0.0015 | 0.0 | 0.0 |
| 1.567302 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
