Measurement E213M745
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 3.0 — 3.5 GeV2 | |
| W: | 1.6 — 1.625 GeV | |
| Ebeam: | 5.754 GeV | |

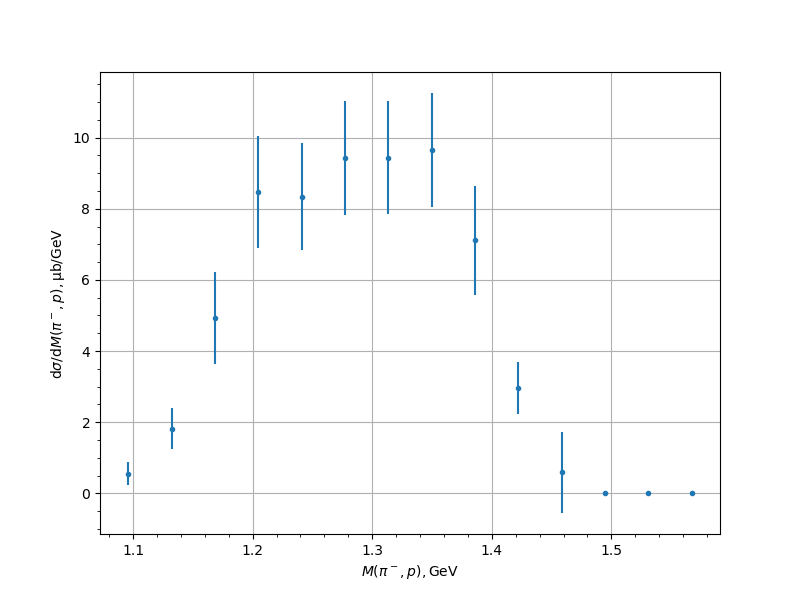

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.09597 | 0.556 | 0.0853 | 0.1346 | 0.3154 |
| 1.132227 | 1.8238 | 0.2124 | 0.408 | 0.5801 |
| 1.168483 | 4.9295 | 0.4329 | 0.9157 | 1.2931 |
| 1.204739 | 8.469 | 0.6935 | 1.4166 | 1.5772 |
| 1.240995 | 8.3415 | 0.5172 | 1.413 | 1.5047 |
| 1.277252 | 9.421 | 0.5256 | 1.52 | 1.6083 |
| 1.313508 | 9.4289 | 0.467 | 1.5191 | 1.5892 |
| 1.349764 | 9.654 | 0.6858 | 1.443 | 1.5977 |
| 1.38602 | 7.1111 | 0.5157 | 1.0841 | 1.5343 |
| 1.422277 | 2.9739 | 0.288 | 0.5159 | 0.7311 |
| 1.458533 | 0.5907 | 0.1335 | 0.1228 | 1.1402 |
| 1.494789 | 0.0012 | 0.0014 | 0.0007 | 0.0016 |
| 1.531046 | 0.0 | 0.0 | 0.0 | 0.0 |
| 1.567302 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
