Measurement E213M747
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 3.0 — 3.5 GeV2 | |
| W: | 1.6 — 1.625 GeV | |
| Ebeam: | 5.754 GeV | |

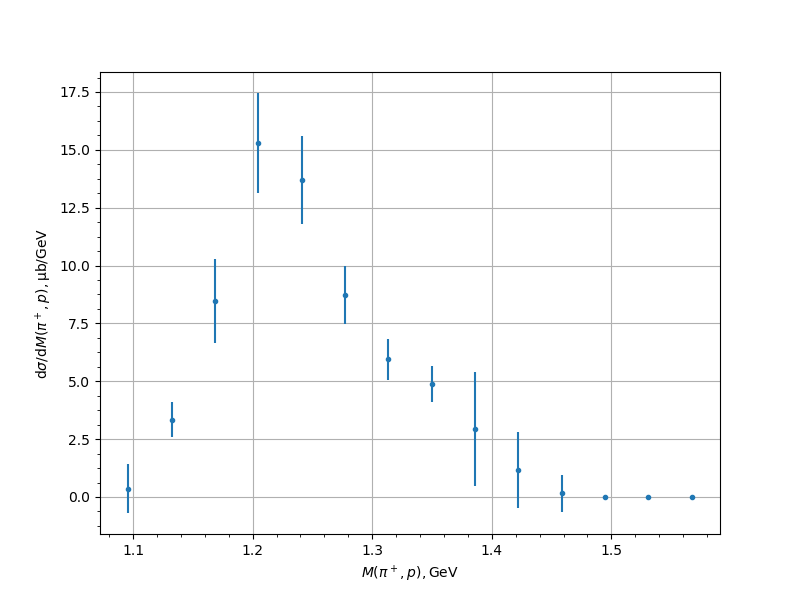

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.09597 | 0.3636 | 0.0506 | 0.1119 | 1.0565 |
| 1.132227 | 3.3453 | 0.3371 | 0.6721 | 0.7519 |
| 1.168483 | 8.4702 | 0.7806 | 1.2697 | 1.8033 |
| 1.204739 | 15.2869 | 0.9075 | 1.9707 | 2.1697 |
| 1.240995 | 13.7019 | 0.9243 | 1.6673 | 1.9064 |
| 1.277252 | 8.7251 | 0.5939 | 1.0839 | 1.2359 |
| 1.313508 | 5.9433 | 0.4337 | 0.7607 | 0.8757 |
| 1.349764 | 4.8755 | 0.4304 | 0.6383 | 0.7699 |
| 1.38602 | 2.9242 | 0.2908 | 0.4328 | 2.4691 |
| 1.422277 | 1.1558 | 0.3165 | 0.2376 | 1.6339 |
| 1.458533 | 0.1622 | 0.0386 | 0.0645 | 0.7912 |
| 1.494789 | 0.0007 | 0.0037 | 0.0004 | 0.0037 |
| 1.531046 | 0.0 | 0.0026 | 0.0 | 0.0 |
| 1.567302 | 0.0 | 0.0014 | 0.0 | 0.0 |
Experiment comment:
