Measurement E213M826
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 3.0 — 3.5 GeV2 | |
| W: | 1.825 — 1.85 GeV | |
| Ebeam: | 5.754 GeV | |

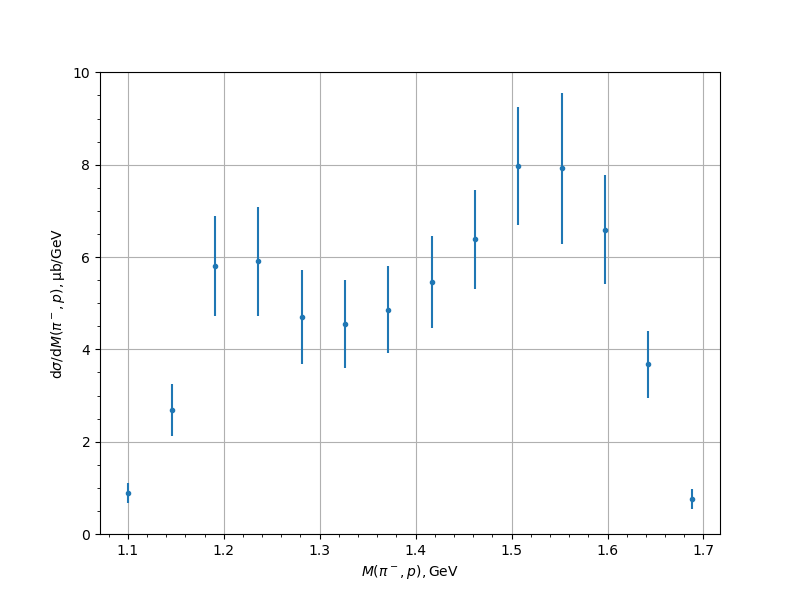

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.100435 | 0.8951 | 0.1268 | 0.1785 | 0.2189 |
| 1.145619 | 2.6853 | 0.263 | 0.4907 | 0.5567 |
| 1.190804 | 5.8078 | 0.4599 | 0.9786 | 1.0813 |
| 1.235989 | 5.9052 | 0.5108 | 1.0594 | 1.1761 |
| 1.281174 | 4.7007 | 0.4308 | 0.9284 | 1.0235 |
| 1.326359 | 4.5505 | 0.3309 | 0.886 | 0.9458 |
| 1.371544 | 4.8579 | 0.399 | 0.8476 | 0.9368 |
| 1.416728 | 5.4622 | 0.3974 | 0.9109 | 0.9938 |
| 1.461913 | 6.3822 | 0.4189 | 0.9855 | 1.0708 |
| 1.507098 | 7.9723 | 0.5338 | 1.1607 | 1.2776 |
| 1.552283 | 7.9236 | 1.0987 | 1.2079 | 1.6328 |
| 1.597468 | 6.5951 | 0.6015 | 1.004 | 1.1704 |
| 1.642653 | 3.6767 | 0.3489 | 0.6379 | 0.7271 |
| 1.687837 | 0.7591 | 0.1338 | 0.1752 | 0.2205 |
Experiment comment:
