Measurement E213M828
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 3.0 — 3.5 GeV2 | |
| W: | 1.825 — 1.85 GeV | |
| Ebeam: | 5.754 GeV | |

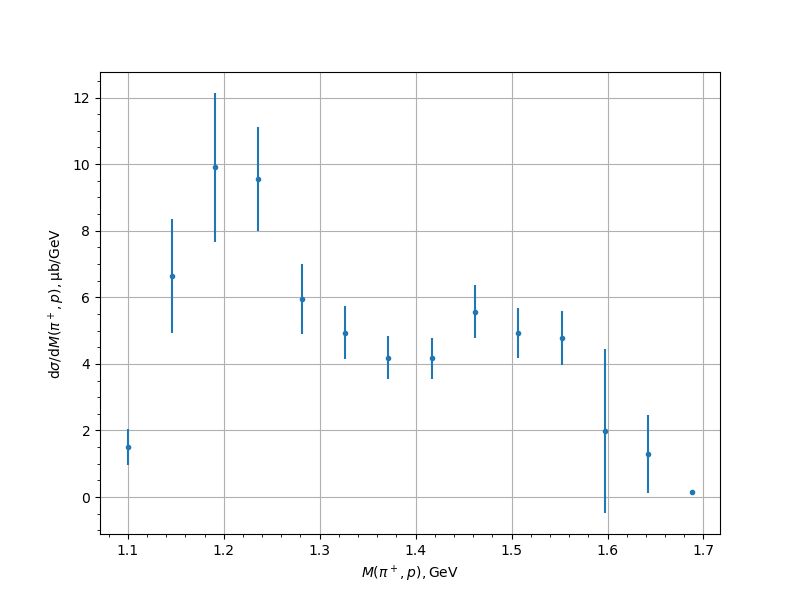

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.100435 | 1.4957 | 0.153 | 0.3767 | 0.5372 |
| 1.145619 | 6.6383 | 0.4392 | 1.2154 | 1.7215 |
| 1.190804 | 9.9001 | 0.555 | 1.5778 | 2.2365 |
| 1.235989 | 9.5526 | 0.6904 | 1.4083 | 1.5684 |
| 1.281174 | 5.9524 | 0.5411 | 0.8957 | 1.0465 |
| 1.326359 | 4.9329 | 0.3565 | 0.7093 | 0.7939 |
| 1.371544 | 4.187 | 0.2643 | 0.5863 | 0.6431 |
| 1.416728 | 4.1634 | 0.298 | 0.55 | 0.6255 |
| 1.461913 | 5.5668 | 0.4336 | 0.6745 | 0.8018 |
| 1.507098 | 4.9296 | 0.4637 | 0.5933 | 0.753 |
| 1.552283 | 4.7739 | 0.3667 | 0.575 | 0.8215 |
| 1.597468 | 1.9802 | 0.4444 | 0.2659 | 2.4588 |
| 1.642653 | 1.2963 | 0.1477 | 0.2048 | 1.1658 |
| 1.687837 | 0.1491 | 0.0278 | 0.053 | 0.0598 |
Experiment comment:
