Measurement E213M837
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 3.0 — 3.5 GeV2 | |
| W: | 1.85 — 1.875 GeV | |
| Ebeam: | 5.754 GeV | |

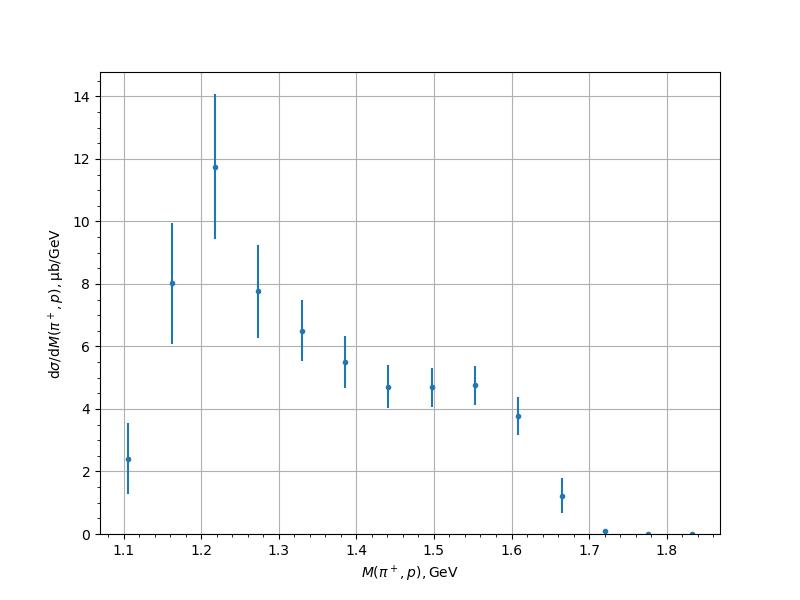

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.105792 | 2.404 | 0.2837 | 0.5247 | 1.1326 |
| 1.161691 | 8.029 | 0.7561 | 1.3654 | 1.9385 |
| 1.21759 | 11.7552 | 0.6665 | 1.6411 | 2.3247 |
| 1.273489 | 7.7693 | 0.6515 | 1.0562 | 1.4904 |
| 1.329388 | 6.5106 | 0.48 | 0.8478 | 0.9743 |
| 1.385287 | 5.497 | 0.4697 | 0.688 | 0.833 |
| 1.441186 | 4.7124 | 0.3788 | 0.5712 | 0.6854 |
| 1.497086 | 4.6899 | 0.2944 | 0.5442 | 0.6187 |
| 1.552985 | 4.7547 | 0.2959 | 0.5348 | 0.6112 |
| 1.608884 | 3.771 | 0.2559 | 0.4313 | 0.6132 |
| 1.664783 | 1.2283 | 0.2401 | 0.1712 | 0.5666 |
| 1.720682 | 0.0919 | 0.019 | 0.0356 | 0.0689 |
| 1.776581 | 0.0 | 0.0009 | 0.0 | 0.0 |
| 1.83248 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
