Measurement E213M864
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 3.0 — 3.5 GeV2 | |
| W: | 1.925 — 1.95 GeV | |
| Ebeam: | 5.754 GeV | |

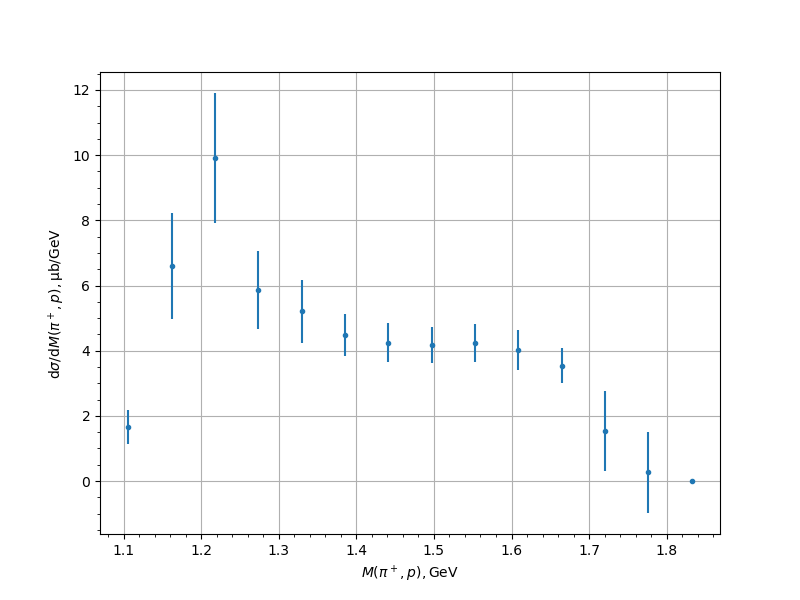

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.105792 | 1.668 | 0.1659 | 0.368 | 0.5261 |
| 1.161691 | 6.6048 | 0.4022 | 1.1473 | 1.626 |
| 1.21759 | 9.9134 | 0.5617 | 1.4083 | 1.994 |
| 1.273489 | 5.8744 | 0.3498 | 0.84 | 1.1949 |
| 1.329388 | 5.2099 | 0.4391 | 0.6811 | 0.9689 |
| 1.385287 | 4.4757 | 0.2972 | 0.5687 | 0.6416 |
| 1.441186 | 4.2496 | 0.3011 | 0.5119 | 0.5939 |
| 1.497086 | 4.1715 | 0.2606 | 0.4876 | 0.5528 |
| 1.552985 | 4.2237 | 0.351 | 0.4648 | 0.5825 |
| 1.608884 | 4.0281 | 0.2622 | 0.4251 | 0.6062 |
| 1.664783 | 3.5416 | 0.2476 | 0.3669 | 0.5265 |
| 1.720682 | 1.5395 | 0.1537 | 0.1896 | 1.2185 |
| 1.776581 | 0.2661 | 0.0439 | 0.0582 | 1.2453 |
| 1.83248 | 0.0001 | 0.0012 | 0.0 | 0.0012 |
Experiment comment:
