Measurement E213M898
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 3.0 — 3.5 GeV2 | |
| W: | 2.025 — 2.05 GeV | |
| Ebeam: | 5.754 GeV | |

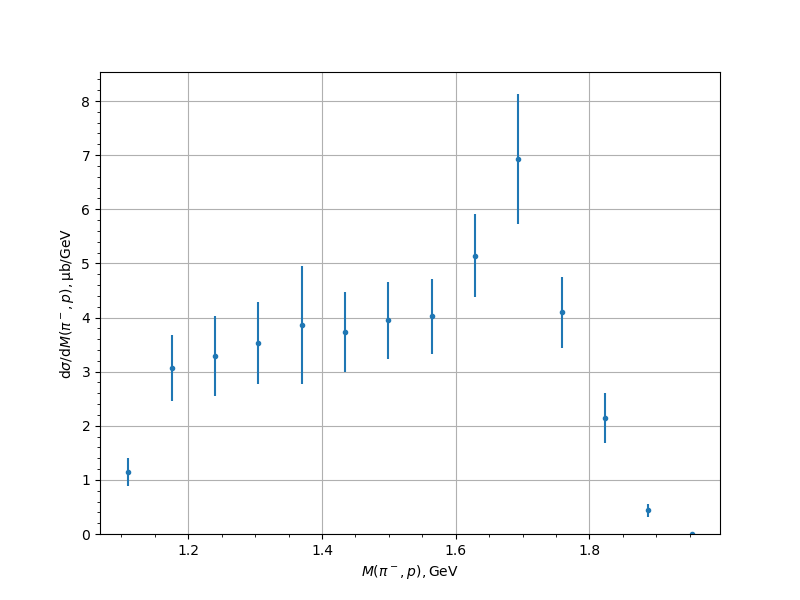

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.110256 | 1.1487 | 0.15 | 0.2121 | 0.2598 |
| 1.175084 | 3.0686 | 0.2321 | 0.5669 | 0.6126 |
| 1.239911 | 3.2867 | 0.264 | 0.6932 | 0.7418 |
| 1.304739 | 3.5289 | 0.3024 | 0.6895 | 0.7529 |
| 1.369567 | 3.869 | 0.8473 | 0.6883 | 1.0916 |
| 1.434394 | 3.7362 | 0.3286 | 0.6648 | 0.7416 |
| 1.499222 | 3.9528 | 0.3136 | 0.6385 | 0.7113 |
| 1.56405 | 4.0191 | 0.3218 | 0.6047 | 0.685 |
| 1.628878 | 5.1447 | 0.3941 | 0.6525 | 0.7623 |
| 1.693705 | 6.9323 | 0.8664 | 0.826 | 1.1971 |
| 1.758533 | 4.0975 | 0.2221 | 0.618 | 0.6568 |
| 1.823361 | 2.1421 | 0.2974 | 0.3517 | 0.4606 |
| 1.888188 | 0.4354 | 0.0579 | 0.0997 | 0.1153 |
| 1.953016 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
