Measurement E213M900
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 3.0 — 3.5 GeV2 | |
| W: | 2.025 — 2.05 GeV | |
| Ebeam: | 5.754 GeV | |

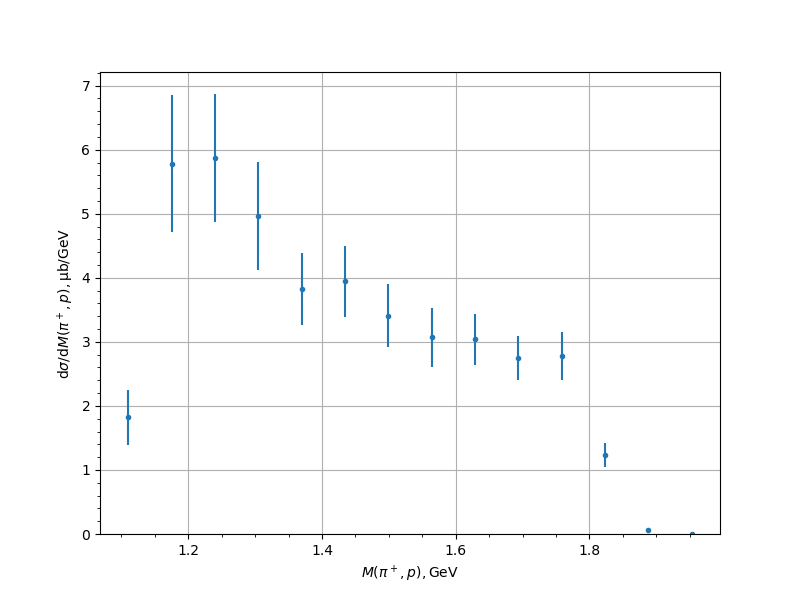

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.110256 | 1.8216 | 0.1834 | 0.3913 | 0.4321 |
| 1.175084 | 5.7824 | 0.3986 | 0.9951 | 1.072 |
| 1.239911 | 5.8741 | 0.4231 | 0.9016 | 0.9959 |
| 1.304739 | 4.9705 | 0.4853 | 0.6875 | 0.8415 |
| 1.369567 | 3.8266 | 0.2377 | 0.5131 | 0.5655 |
| 1.434394 | 3.9496 | 0.2584 | 0.4903 | 0.5542 |
| 1.499222 | 3.4112 | 0.248 | 0.4204 | 0.4881 |
| 1.56405 | 3.0686 | 0.2789 | 0.3732 | 0.4658 |
| 1.628878 | 3.0403 | 0.2149 | 0.3397 | 0.4019 |
| 1.693705 | 2.7483 | 0.1944 | 0.2896 | 0.3488 |
| 1.758533 | 2.7792 | 0.2506 | 0.278 | 0.3743 |
| 1.823361 | 1.2385 | 0.1225 | 0.1423 | 0.1878 |
| 1.888188 | 0.0697 | 0.0145 | 0.0239 | 0.028 |
| 1.953016 | 0.0 | 0.0007 | 0.0 | 0.0 |
