Measurement E213M934
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 3.5 — 4.2 GeV2 | |
| W: | 1.4 — 1.425 GeV | |
| Ebeam: | 5.754 GeV | |

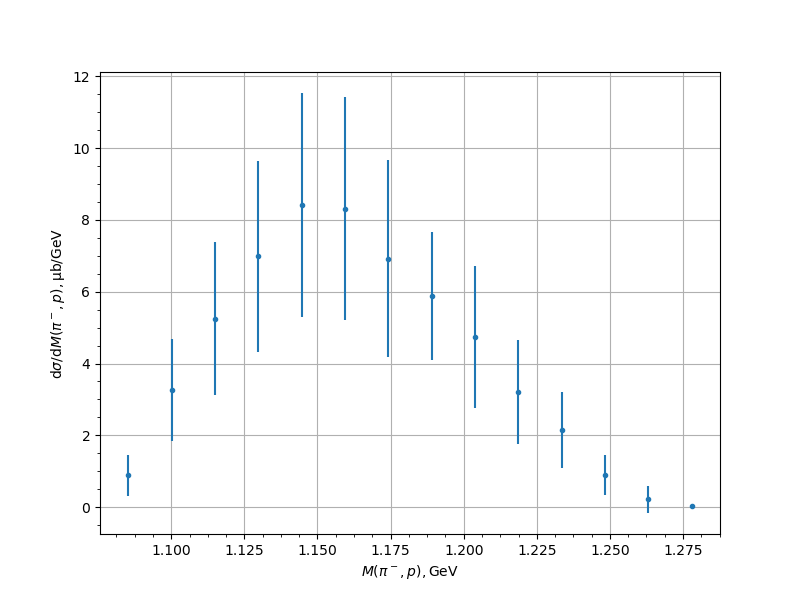

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.085256 | 0.8817 | 0.147 | 0.3562 | 0.5715 |
| 1.100084 | 3.2559 | 0.3934 | 1.014 | 1.4265 |
| 1.114911 | 5.254 | 0.7185 | 1.5069 | 2.1393 |
| 1.129739 | 6.9891 | 0.8383 | 1.8794 | 2.6571 |
| 1.144567 | 8.4112 | 0.9212 | 2.2095 | 3.1259 |
| 1.159394 | 8.3184 | 0.9244 | 2.202 | 3.1158 |
| 1.174222 | 6.9172 | 0.6521 | 1.9351 | 2.7416 |
| 1.18905 | 5.8783 | 0.5968 | 1.6784 | 1.7814 |
| 1.203877 | 4.7444 | 0.4805 | 1.3999 | 1.9835 |
| 1.218705 | 3.2006 | 0.5011 | 1.0213 | 1.4442 |
| 1.233533 | 2.1458 | 0.2971 | 0.7451 | 1.0552 |
| 1.248361 | 0.889 | 0.1348 | 0.3939 | 0.5576 |
| 1.263188 | 0.2141 | 0.0339 | 0.1334 | 0.3782 |
| 1.278016 | 0.034 | 0.0151 | 0.0231 | 0.0276 |
Experiment comment:
