Measurement E213M936
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 3.5 — 4.2 GeV2 | |
| W: | 1.4 — 1.425 GeV | |
| Ebeam: | 5.754 GeV | |

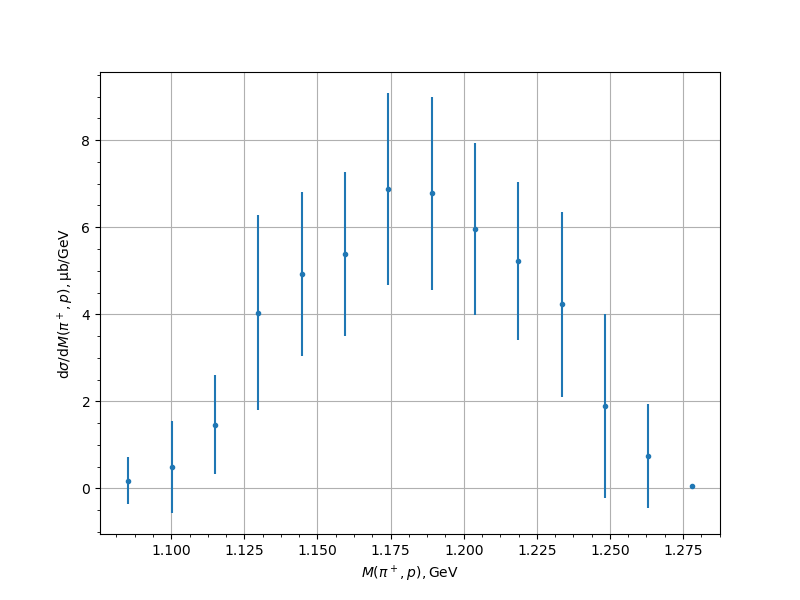

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.085256 | 0.1749 | 0.026 | 0.1188 | 0.5392 |
| 1.100084 | 0.4896 | 0.0332 | 0.3325 | 1.0569 |
| 1.114911 | 1.4655 | 0.1534 | 0.8078 | 1.1463 |
| 1.129739 | 4.0354 | 0.4203 | 1.5814 | 2.2357 |
| 1.144567 | 4.9312 | 0.5185 | 1.8076 | 1.8805 |
| 1.159394 | 5.3859 | 0.489 | 1.8102 | 1.8751 |
| 1.174222 | 6.8797 | 0.7074 | 2.0885 | 2.205 |
| 1.18905 | 6.7757 | 0.6287 | 2.1245 | 2.2155 |
| 1.203877 | 5.9589 | 0.6163 | 1.876 | 1.9747 |
| 1.218705 | 5.2247 | 0.5188 | 1.746 | 1.8214 |
| 1.233533 | 4.2315 | 0.4978 | 1.5037 | 2.1295 |
| 1.248361 | 1.8816 | 0.2474 | 0.8832 | 2.1132 |
| 1.263188 | 0.7427 | 0.1313 | 0.3587 | 1.1868 |
| 1.278016 | 0.0457 | 0.0237 | 0.0274 | 0.0362 |
Experiment comment:
