Measurement E213M972
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 3.5 — 4.2 GeV2 | |
| W: | 1.5 — 1.525 GeV | |
| Ebeam: | 5.754 GeV | |

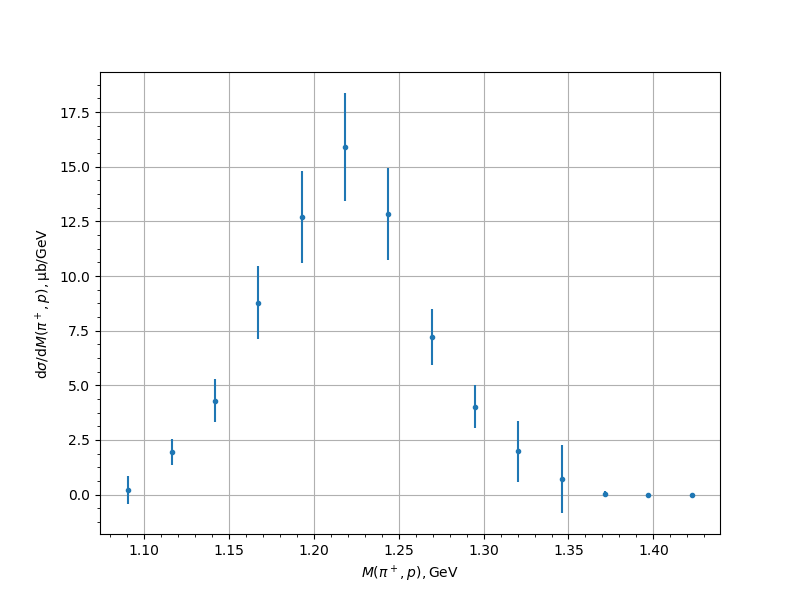

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.090613 | 0.2341 | 0.0278 | 0.1248 | 0.6401 |
| 1.116155 | 1.9485 | 0.2493 | 0.5382 | 0.5931 |
| 1.141697 | 4.2937 | 0.3572 | 0.9101 | 0.9777 |
| 1.167239 | 8.7817 | 0.7704 | 1.4758 | 1.6648 |
| 1.192781 | 12.6854 | 0.8457 | 1.9291 | 2.1063 |
| 1.218323 | 15.9023 | 0.9805 | 2.2651 | 2.4682 |
| 1.243865 | 12.8327 | 0.9788 | 1.8572 | 2.0993 |
| 1.269407 | 7.207 | 0.6035 | 1.1219 | 1.2739 |
| 1.294949 | 4.0234 | 0.4407 | 0.6979 | 0.9819 |
| 1.320491 | 1.9844 | 0.2317 | 0.4489 | 1.4053 |
| 1.346033 | 0.7052 | 0.1254 | 0.2482 | 1.5454 |
| 1.371575 | 0.0418 | 0.0123 | 0.0262 | 0.1154 |
| 1.397117 | 0.0 | 0.0048 | 0.0 | 0.0048 |
| 1.422659 | 0.0 | 0.0001 | 0.0 | 0.0 |
Experiment comment:
