Measurement E213M981
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 3.5 — 4.2 GeV2 | |
| W: | 1.525 — 1.55 GeV | |
| Ebeam: | 5.754 GeV | |

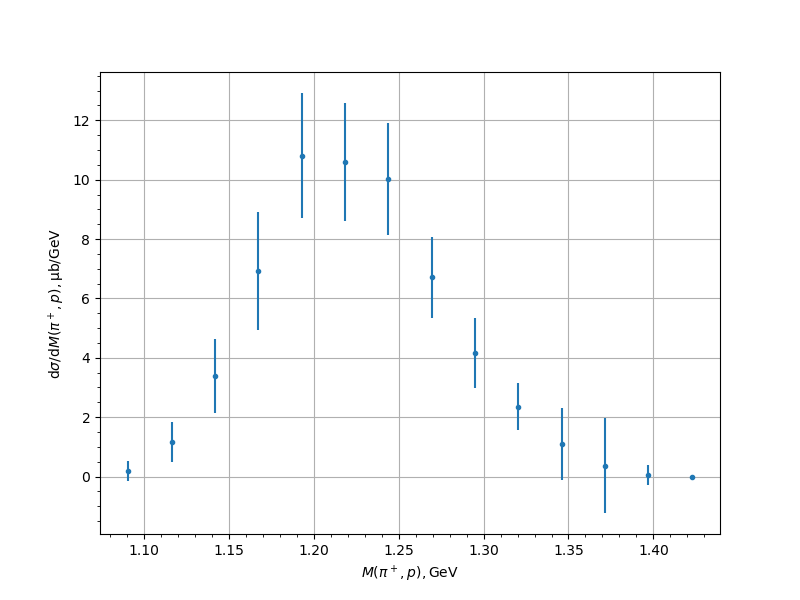

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.090613 | 0.1844 | 0.0361 | 0.0951 | 0.3493 |
| 1.116155 | 1.1726 | 0.5359 | 0.4128 | 0.6764 |
| 1.141697 | 3.391 | 0.3791 | 0.8754 | 1.2406 |
| 1.167239 | 6.9245 | 0.5549 | 1.4137 | 2.0001 |
| 1.192781 | 10.8075 | 0.8171 | 1.9477 | 2.1122 |
| 1.218323 | 10.5883 | 0.7027 | 1.864 | 1.992 |
| 1.243865 | 10.0217 | 0.7016 | 1.7455 | 1.8812 |
| 1.269407 | 6.7122 | 0.5957 | 1.231 | 1.3675 |
| 1.294949 | 4.1628 | 0.4089 | 0.8357 | 1.1842 |
| 1.320491 | 2.3532 | 0.3698 | 0.5508 | 0.7854 |
| 1.346033 | 1.087 | 0.1677 | 0.3247 | 1.212 |
| 1.371575 | 0.3653 | 0.0585 | 0.1633 | 1.5935 |
| 1.397117 | 0.04 | 0.0358 | 0.0262 | 0.3369 |
| 1.422659 | 0.0 | 0.0056 | 0.0 | 0.0 |
Experiment comment:
