Measurement E216M1006
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(π−))) | |
| Q2: | 7.0 — 8.0 GeV2 | |
| W: | 2.05 — 2.1 GeV | |

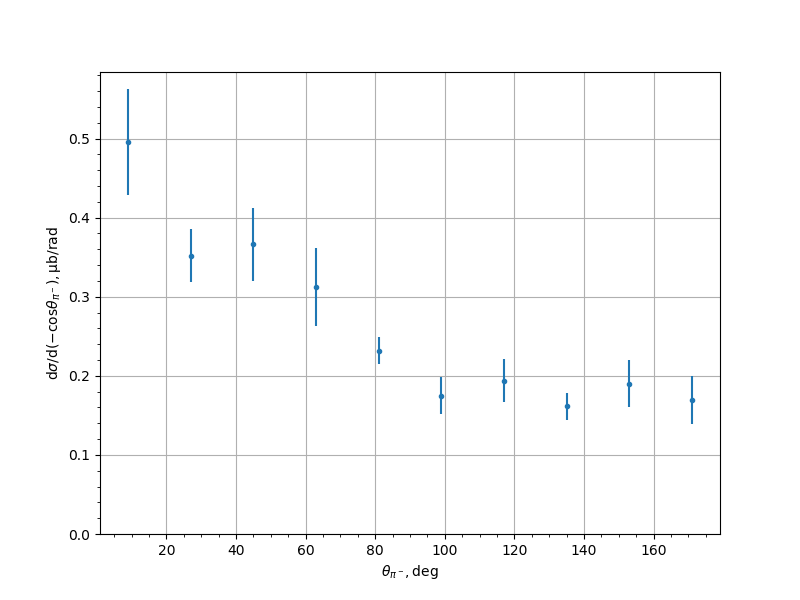

| θ(π−), [deg] | dσ/d(−cos(θ(π−))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.495533 | 0.0674632 |
| 27.0 | 0.351931 | 0.0336511 |
| 45.0 | 0.366261 | 0.0461331 |
| 63.0 | 0.312485 | 0.0489162 |
| 81.0 | 0.231782 | 0.017104 |
| 99.0 | 0.17499 | 0.0232621 |
| 117.0 | 0.193785 | 0.0270549 |
| 135.0 | 0.161248 | 0.0175931 |
| 153.0 | 0.190212 | 0.0293445 |
| 171.0 | 0.169105 | 0.0300814 |
