Measurement E216M133
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(π−))) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.4 — 1.45 GeV | |

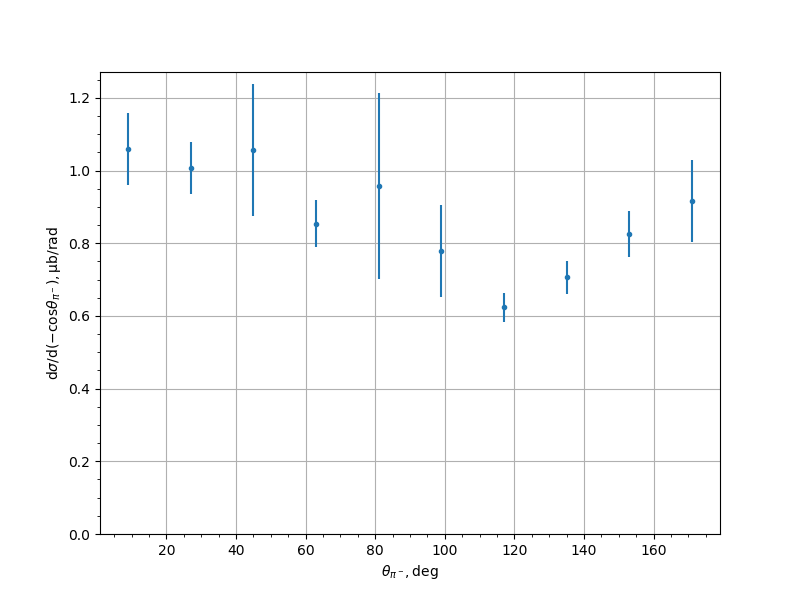

| θ(π−), [deg] | dσ/d(−cos(θ(π−))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 1.0595 | 0.0983151 |
| 27.0 | 1.00753 | 0.0711525 |
| 45.0 | 1.05667 | 0.181705 |
| 63.0 | 0.853979 | 0.0653219 |
| 81.0 | 0.957293 | 0.256636 |
| 99.0 | 0.779798 | 0.126442 |
| 117.0 | 0.624325 | 0.0399147 |
| 135.0 | 0.706001 | 0.0460019 |
| 153.0 | 0.825505 | 0.0622432 |
| 171.0 | 0.916214 | 0.113732 |
