Measurement E216M135
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.4 — 1.45 GeV | |

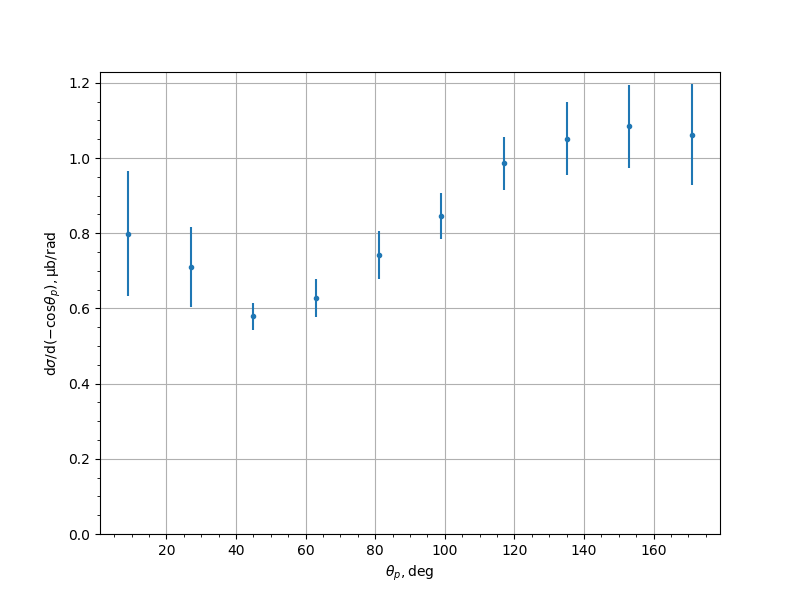

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.798378 | 0.166072 |
| 27.0 | 0.709662 | 0.106234 |
| 45.0 | 0.578638 | 0.0360514 |
| 63.0 | 0.627131 | 0.0510818 |
| 81.0 | 0.741706 | 0.0631212 |
| 99.0 | 0.844779 | 0.0610573 |
| 117.0 | 0.986544 | 0.0708562 |
| 135.0 | 1.05189 | 0.097042 |
| 153.0 | 1.08407 | 0.109839 |
| 171.0 | 1.06209 | 0.134229 |
