Measurement E216M160
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(π−))) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.55 — 1.6 GeV | |

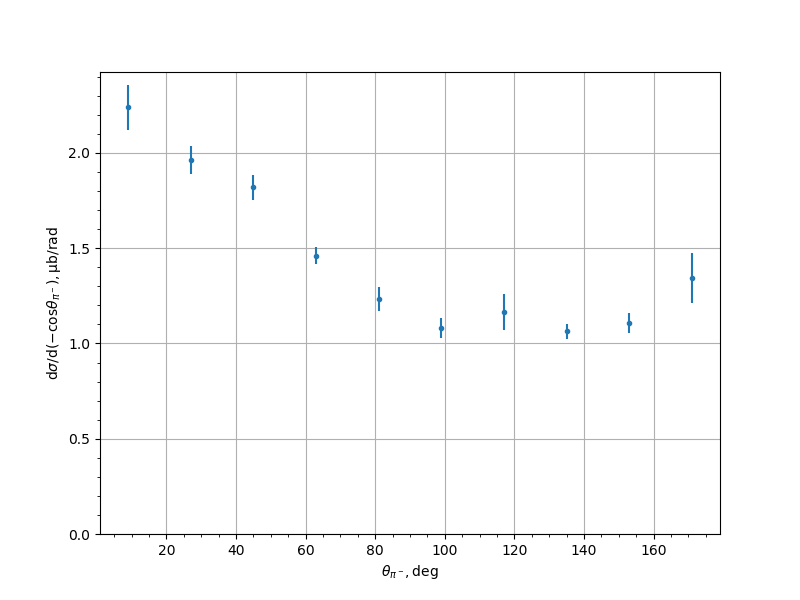

| θ(π−), [deg] | dσ/d(−cos(θ(π−))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 2.24026 | 0.11808 |
| 27.0 | 1.96258 | 0.0718644 |
| 45.0 | 1.81966 | 0.0638234 |
| 63.0 | 1.45989 | 0.0443634 |
| 81.0 | 1.23234 | 0.0631813 |
| 99.0 | 1.0825 | 0.0535382 |
| 117.0 | 1.16719 | 0.0943216 |
| 135.0 | 1.06313 | 0.040981 |
| 153.0 | 1.10763 | 0.0506326 |
| 171.0 | 1.3444 | 0.132103 |
