Measurement E216M171
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.6 — 1.65 GeV | |

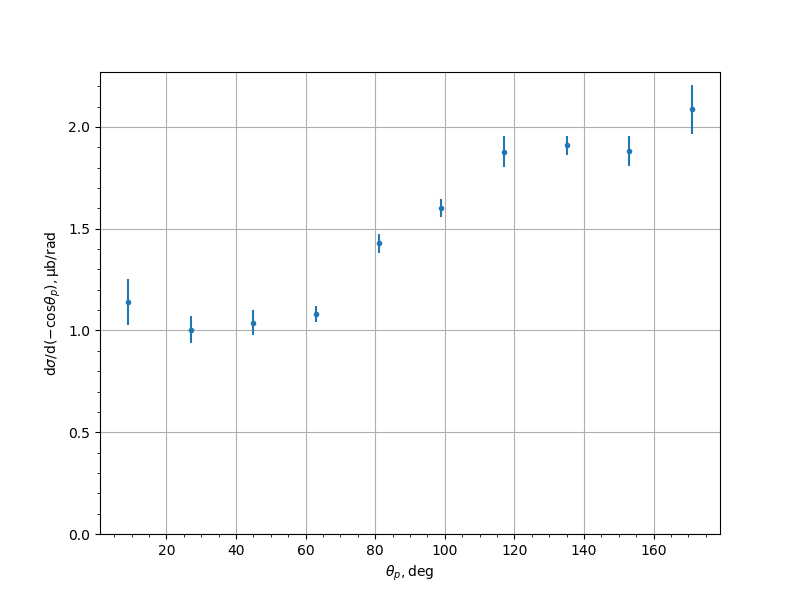

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 1.13856 | 0.113935 |
| 27.0 | 1.00356 | 0.066023 |
| 45.0 | 1.03741 | 0.0609595 |
| 63.0 | 1.08267 | 0.0398119 |
| 81.0 | 1.42788 | 0.0477515 |
| 99.0 | 1.60219 | 0.0453215 |
| 117.0 | 1.87777 | 0.076926 |
| 135.0 | 1.90871 | 0.0474623 |
| 153.0 | 1.88128 | 0.0727207 |
| 171.0 | 2.08559 | 0.12057 |
