Measurement E216M178
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(π−))) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.65 — 1.7 GeV | |

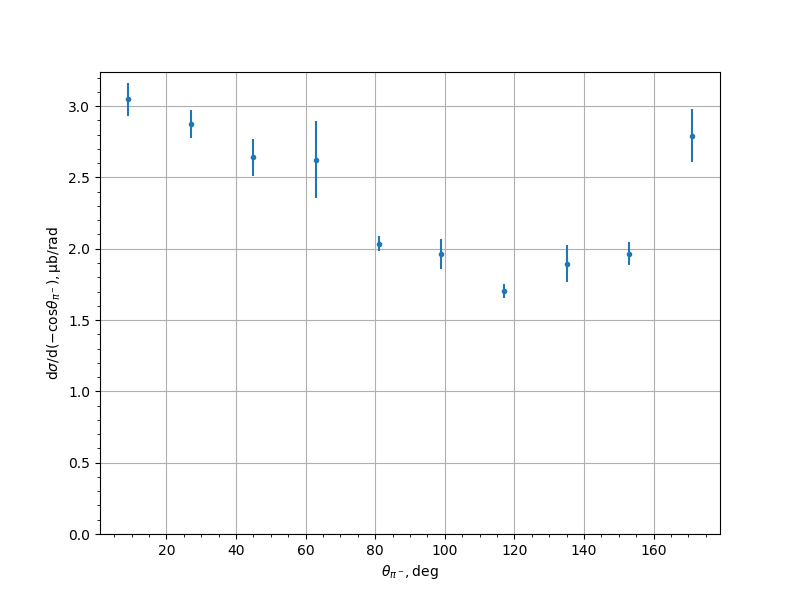

| θ(π−), [deg] | dσ/d(−cos(θ(π−))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 3.04719 | 0.116189 |
| 27.0 | 2.87612 | 0.0976005 |
| 45.0 | 2.64182 | 0.12942 |
| 63.0 | 2.62463 | 0.267916 |
| 81.0 | 2.03509 | 0.0526084 |
| 99.0 | 1.96434 | 0.106868 |
| 117.0 | 1.70276 | 0.0481487 |
| 135.0 | 1.89485 | 0.129906 |
| 153.0 | 1.96418 | 0.0799771 |
| 171.0 | 2.79253 | 0.186586 |
