Measurement E216M180
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.65 — 1.7 GeV | |

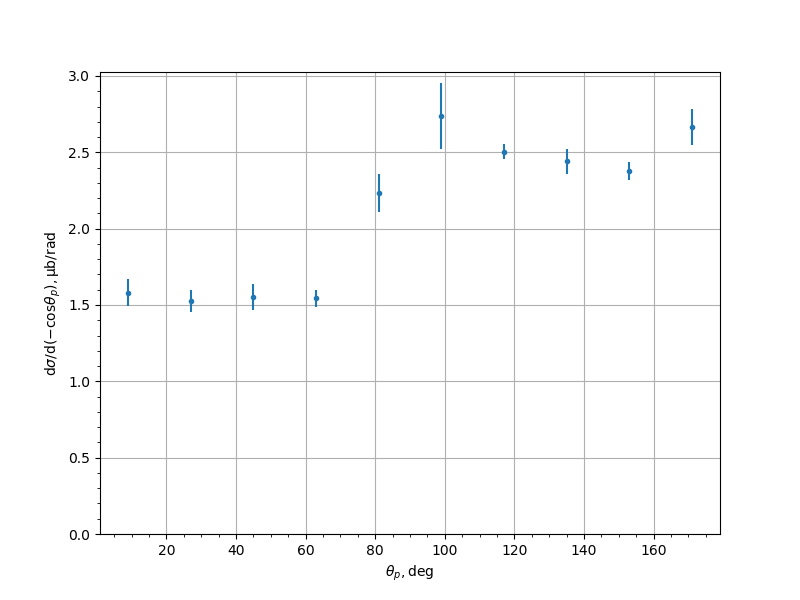

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 1.58101 | 0.0906456 |
| 27.0 | 1.52814 | 0.072869 |
| 45.0 | 1.55513 | 0.0851725 |
| 63.0 | 1.54371 | 0.0552974 |
| 81.0 | 2.23403 | 0.125161 |
| 99.0 | 2.73539 | 0.215986 |
| 117.0 | 2.50437 | 0.0485458 |
| 135.0 | 2.44099 | 0.0839325 |
| 153.0 | 2.38018 | 0.0596603 |
| 171.0 | 2.66522 | 0.117759 |
