Measurement E216M187
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(π−))) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.7 — 1.75 GeV | |

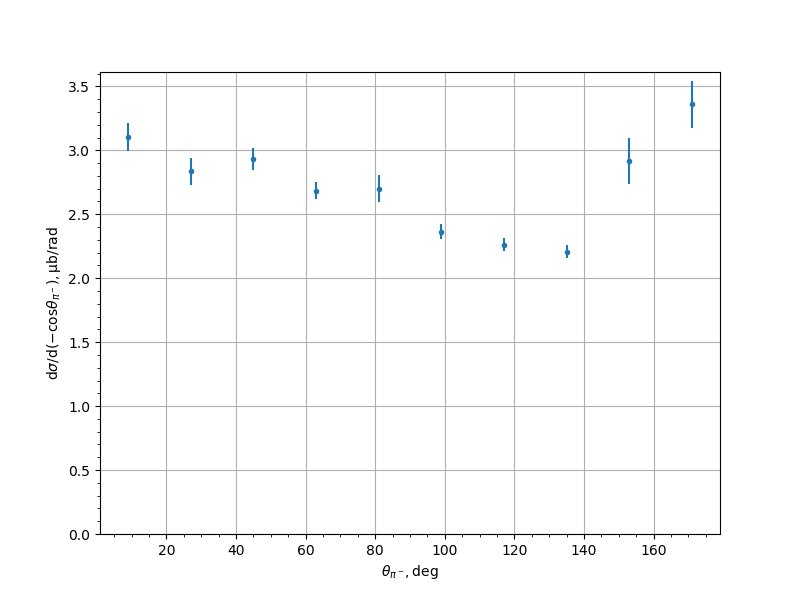

| θ(π−), [deg] | dσ/d(−cos(θ(π−))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 3.10503 | 0.109498 |
| 27.0 | 2.83562 | 0.106716 |
| 45.0 | 2.93266 | 0.0855201 |
| 63.0 | 2.684 | 0.0662711 |
| 81.0 | 2.70061 | 0.106098 |
| 99.0 | 2.36331 | 0.0604027 |
| 117.0 | 2.26296 | 0.0494519 |
| 135.0 | 2.20801 | 0.0521305 |
| 153.0 | 2.91781 | 0.181389 |
| 171.0 | 3.35994 | 0.183127 |
